February 2013
5-18
ColorQube® 9303 Family
PL 12.10
Parts Lists

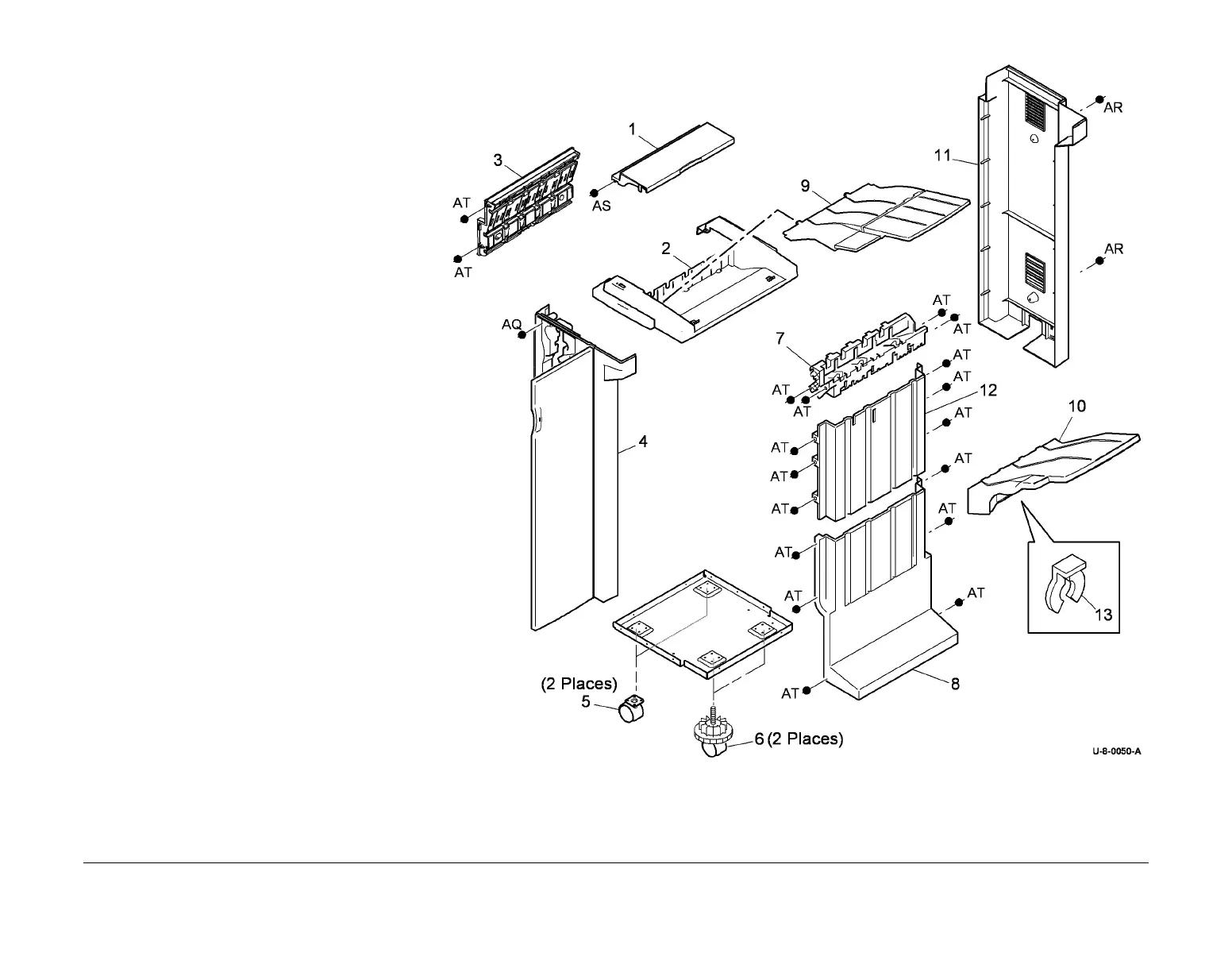

PL 12.10 LCSS Covers
Item Part Description
1 802K31380 Exit cover
2 848K31340 Top cover (REP 12.1-110)
3 – Entry guide cover (REF: PL 12.70
Item 5) (REP 12.15-110)
4 – Front door cover assembly (P/O PL
31.11 Item 2) (REP 12.1-110)
5 017K03750 Fixed caster
6 017K04520 Adjustable caster
7 – Output cover (Not spared)
8 802K48320 Lower right hand cover
9 050K67380 Bin 0
10 050K68490 Bin 1 (ADJ 12.1-110)
11 848K31320 Rear cover assembly (REP 12.1-
110)
12 – Upper right hand cover (Not
spared)
13 019K13380 Bin 1 alignment clip
NOTE: Refer to ADJ 12.2-110 to align the LCSS to the
machine.
