February 2013
5-81
ColorQube® 9303 Family
PL 75.68
Parts Lists

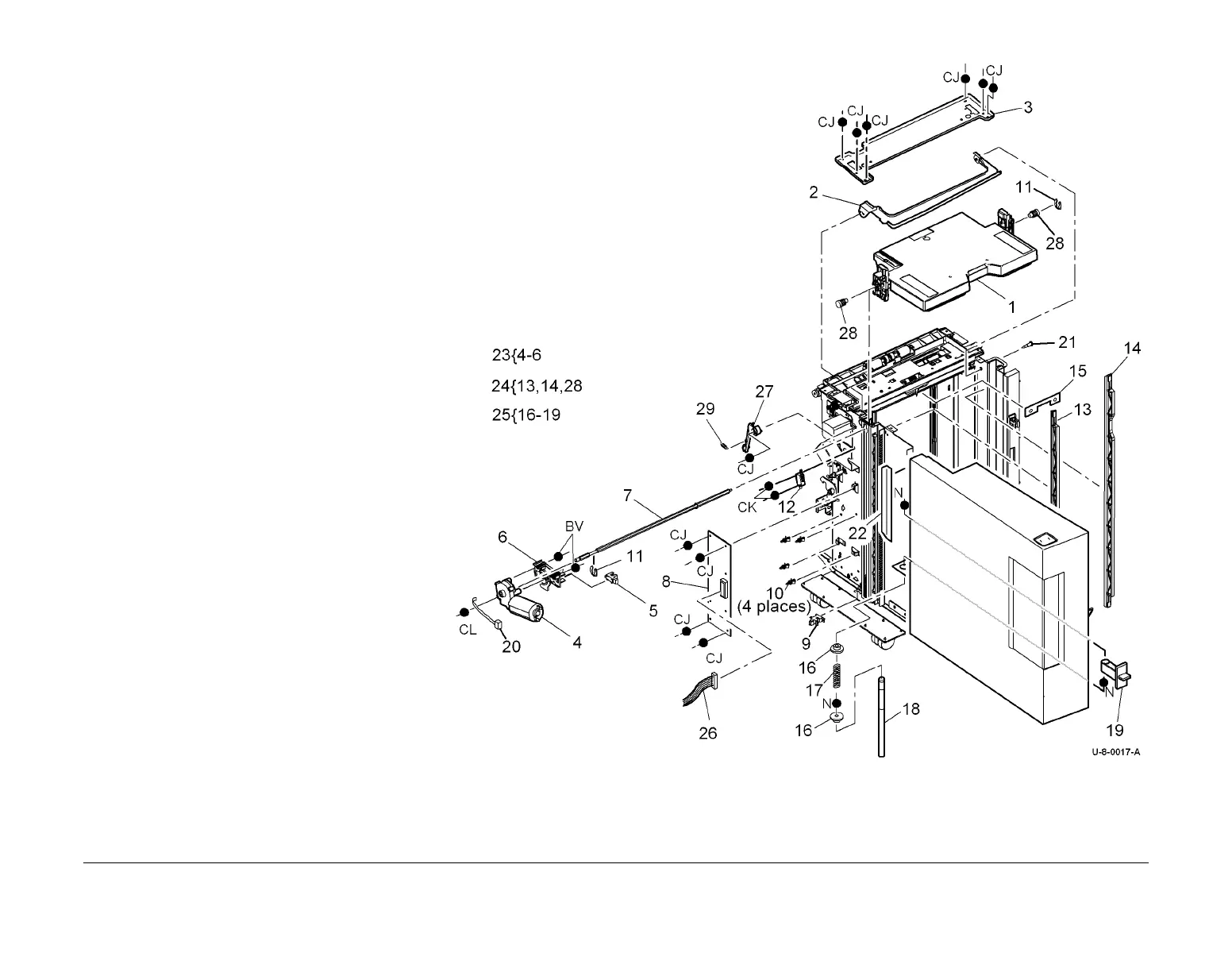

PL 75.68 Tray 5 Lift Assembly (1 of 2)
Item Part Description
1 – Tray assembly (complete) (Not
spared)
2 – Crash bar (Not spared)
3 – Frame top brace (Not spared)
4 – Elevator motor (MOT75-019) (P/O
PL 75.68 Item 23)
5 130K74380 Elevator encoder sensor (Q75-015)
6 – Elevator motor bracket (P/O PL
75.68 Item 23)
7 – Elevator motor shaft (Not spared)
8 960K34453 Tray 5 Control PWB (Centre reg)
9 130K75511 Tray down sensor (Q75-012) (REP
75.3)
10 – Standoff (Not spared)
11 – Tray level drive gear clip (Not
spared)
12 110E06961 Upper limit switch (S75-412)
13 – Rear elevator rack (P/O PL 75.68
Item 24)
14 – Front elevator rack (P/O PL 75.68
Item 24)
15 – Retard roller shield (P/O PL 81.46
Item 1)
16 – Shipping pin bearing (Not spared)
17 – Shipping pin spring (Not spared)
18 – Shipping pin (Not spared)
19 – Shipping pin handle (Not spared)
20 – Cable tie (Not spared)
21 – Clinch stud (Not spared)
22 – Cable holder (Not spared)
23 127K56330 Elevator motor assembly (REP
75.4)
24 007K19660 Elevator rack assembly (REP
75.10)
25 003K20950 Shipping pin handle assembly
26 962K82710 Media path driver PWB to Tray 5
PWB harness (PJ502, PJ513)
27 – Upper limit switch actuator (Not
spared)
28 – Tray level drive gear (Not spared)
29 – Actuator spring (Not spared)
To Next Page
