February 2013
4-270
ColorQube® 9303 Family
REP 73.6
Repairs/Adjustments
REP 73.6 Tray 3 Elevator Damper and Gears
Parts List on PL 73.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present can cause injury.
1. Remove tray 3, REP 73.1.

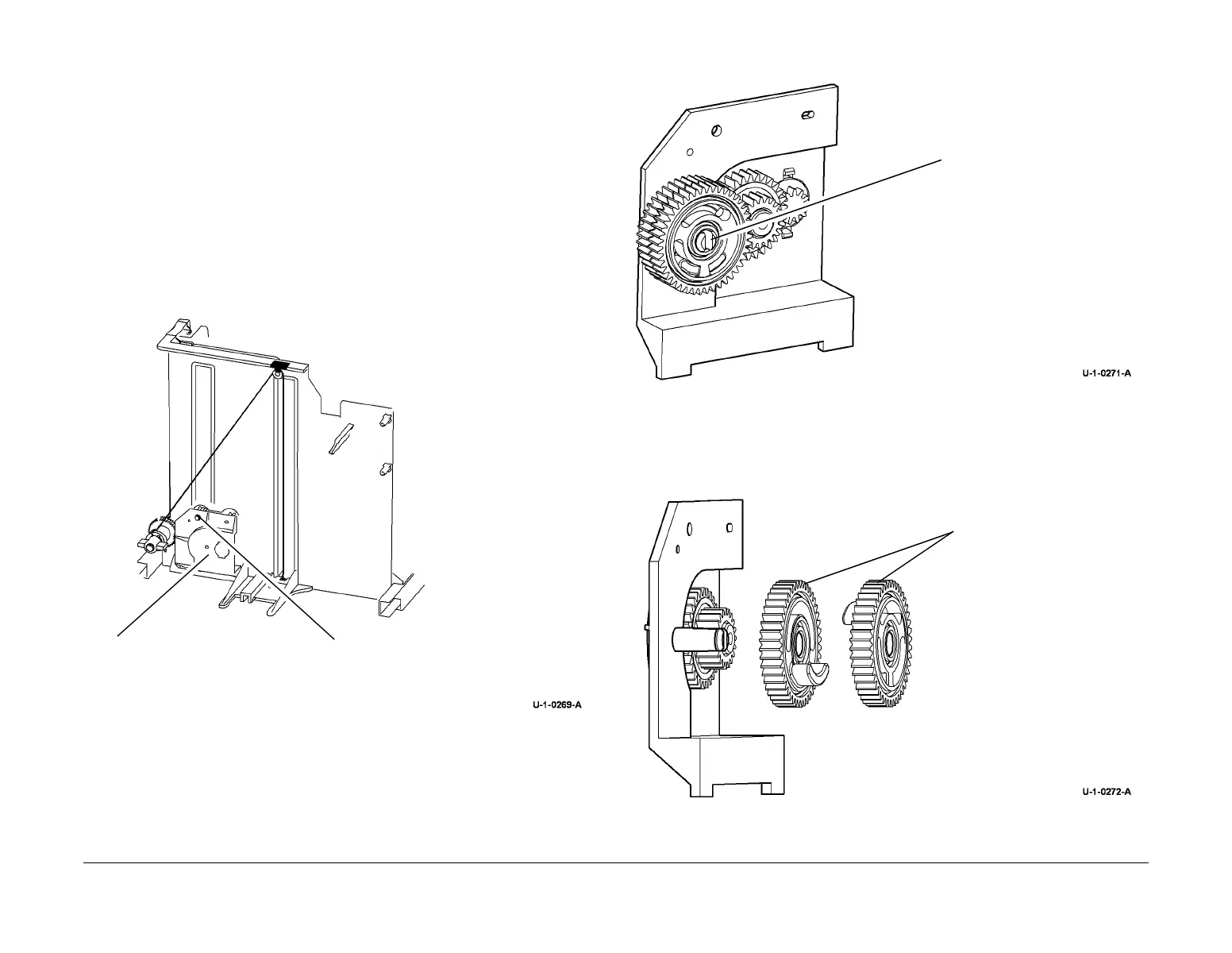

2. To remove the damper from tray 3, Figure 1.
Figure 1 Tray 3 damper
3. To remove the drive gears, Figure 2.
Figure 2 Remove the gears
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure the gears are correctly aligned, Figure 3.
Figure 3 Install the gears
1
Remove the screw
2
Lift and remove the
damper
Pinch the two sections of the
shaft together and pull off the
gears
Align the two gears as shown
and then push the gears onto
the shaft
