Xerox ColorQube 9303 Series Service Manual

February 2013
4-314
ColorQube® 9303 Family
REP 83.5, REP 89.1
Repairs/Adjustments
3. Remove the duplex drive belts and takeaway rolls, Figure 2.

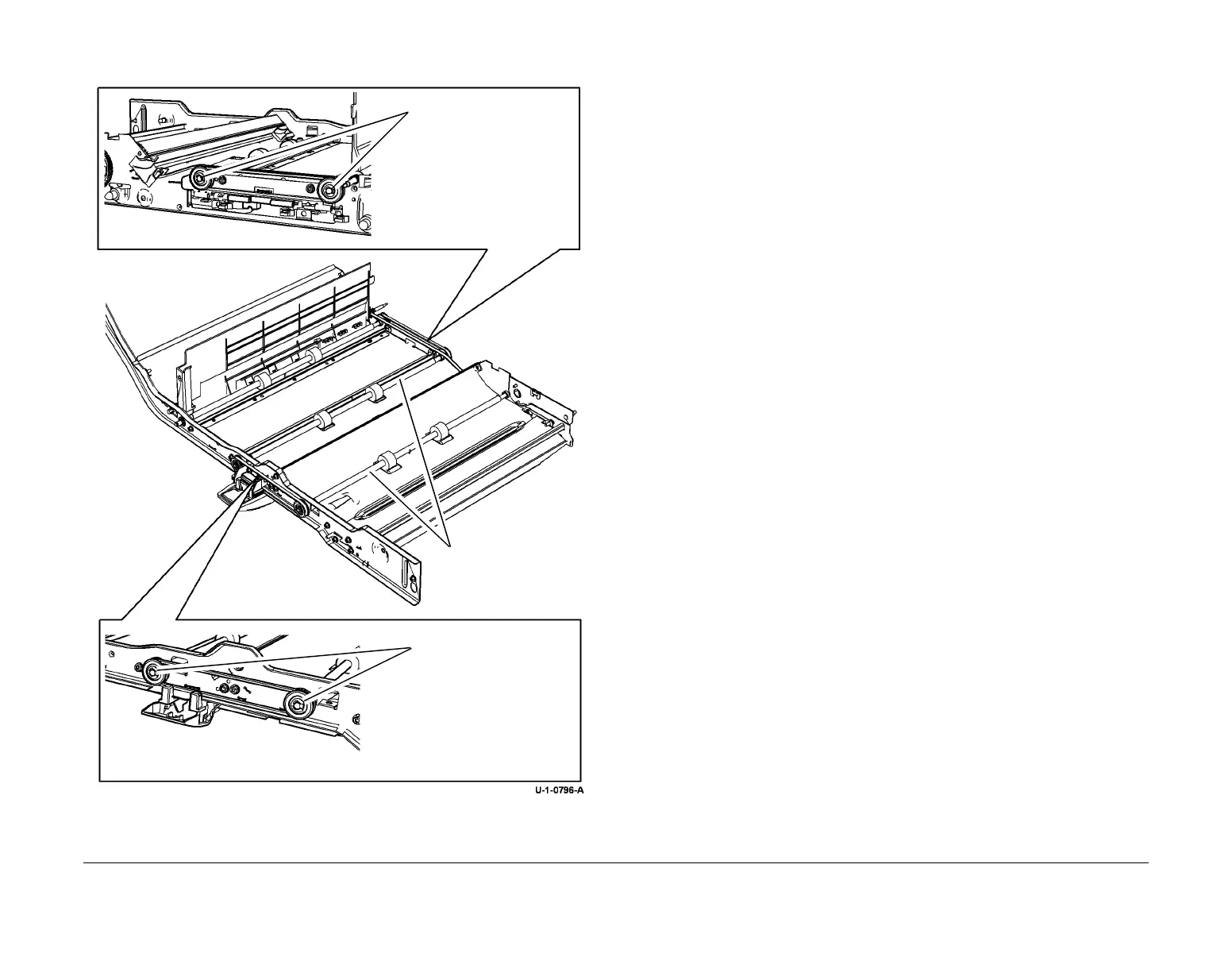

Figure 2 Drive belts and takeaway rolls removal
Replacement
Replacement is the reverse of the removal procedure.
REP 89.1 Registration / Preheat Assembly and Lower
Platelet Assembly
Parts List on PL 88.10
Procedure
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
Go to the relevant procedure:
• Registration / Preheat Assembly Removal
• Lower Platelet Assembly Removal
Registration / Preheat Assembly Removal
CAUTION
Do not touch the printheads.
CAUTION
Protect the surface of the drum with paper.
1. Open the front door. Remove the inner cover, PL 81.11 Item 2.
2. Remove the horizontal transport, REP 83.1.
1
Remove the E-clips and
slide off the pulleys and belt
1
Remove the E-clips and
slide off the pulleys and belt
2
Slide takeaway roll to fron
t
of paper path to remove i
t
