Xerox ColorQube 9303 Series Service Manual

February 2013
5-8
ColorQube® 9303 Family
PL 5.15
Parts Lists

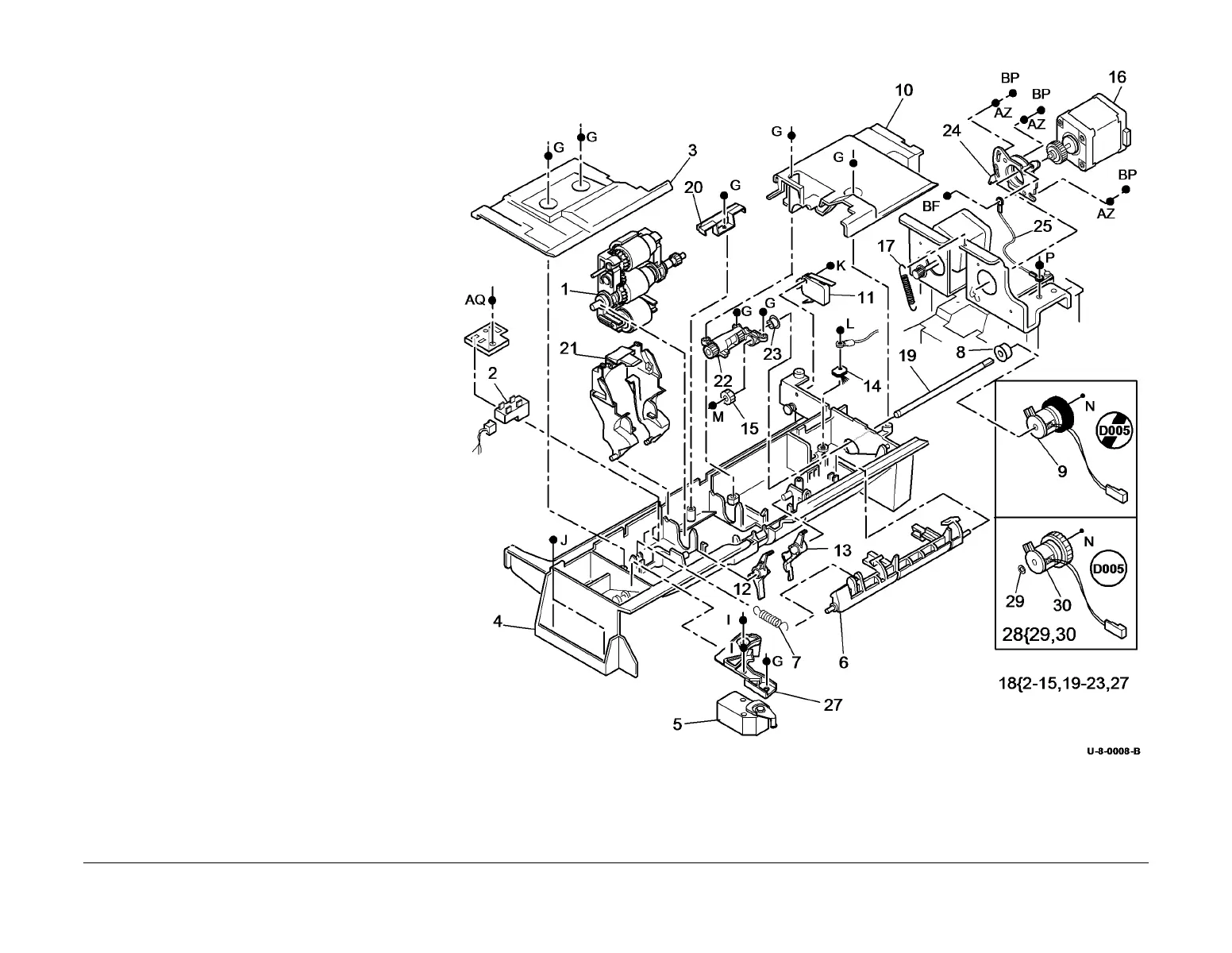

PL 5.15 Feed Assembly
Item Part Description
1 113R00718 Feed roll assembly (REP 5.14)
(See NOTE 2)
2 130E11200 DADH feed sensor (Q05-204)
3 – Front cover (P/O PL 5.15 Item 18)
4 – Feed housing (P/O PL 5.15 Item
18)
5 – Nudger Motor (MOT05-098) (P/O
PL 5.15 Item 18)
6 – Feed yoke (P/O PL 5.15 Item 18)
7 – Spring (P/O PL 5.15 Item 18)
8 – Bearing (P/O PL 5.15 Item 18)
9 – DADH feed clutch (CL05-062) (W/
O TAG D-005) (Not spared)
10 – Rear cover (P/O PL 5.15 Item 18)
11 110E13480 DADH cover interlock switch (S05-
212)
12 – Front feed gate (P/O PL 5.15 Item
18)
13 – Rear feed gate (P/O PL 5.15 Item
18)
14 125E00430 Static eliminator
15 – Gear (P/O PL 5.15 Item 18)
16 127K53770 DADH feed motor (MOT05-074)
(ADJ 5.1)
17 – Feed motor tension spring (red) (P/
O PL 5.10 Item 9)
18 – Feed assembly (complete) (REF:
PL 31.10 Item 15) (REP 5.3)
19 – Shaft (P/O PL 5.15 Item 18)
20 – Bracket (P/O PL 5.15 Item 18)
21 802E87730 Feed roll assembly cover
22 – Intermediate feed bearing (P/O PL
5.15 Item 18)
23 – Bearing (P/O PL 5.15 Item 18)
24 004E22560 Feed motor bracket
25 – Ground harness (P/O PL 5.15 Item
18)
26 – Not used
27 – Motor bracket (P/O PL 5.15 Item
18)
28 604K61440 Feed clutch and spacer kit (W/TAG
D-005)
29 – Spacer (P/O PL 5.15 Item 28) (W/
TAG D-005)
30 – Feed clutch (P/O PL 5.15 Item 28)
(W/TAG D-005)
NOTE: 1: For the feed motor drive belt, refer to PL 5.35 Item
5.
NOTE: 2: To reset the count, go to dC135.
