ColorQube® 9303 Family
REP 10.10
Repairs/Adjustments
REP 10.10 Roller Drive J
Parts List on PL 10.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Use care when working near the drum. The drum can be damaged easily, which will cause
print quality defects.
1. Remove the exit paper path, REP 10.20.
2. Unlock and fully open the stripper gate. GP 31.
3. Remove the post transfix motor (M4) and gearbox, REP 10.8.
4. Remove the 25T gear and bearing, Figure 1.

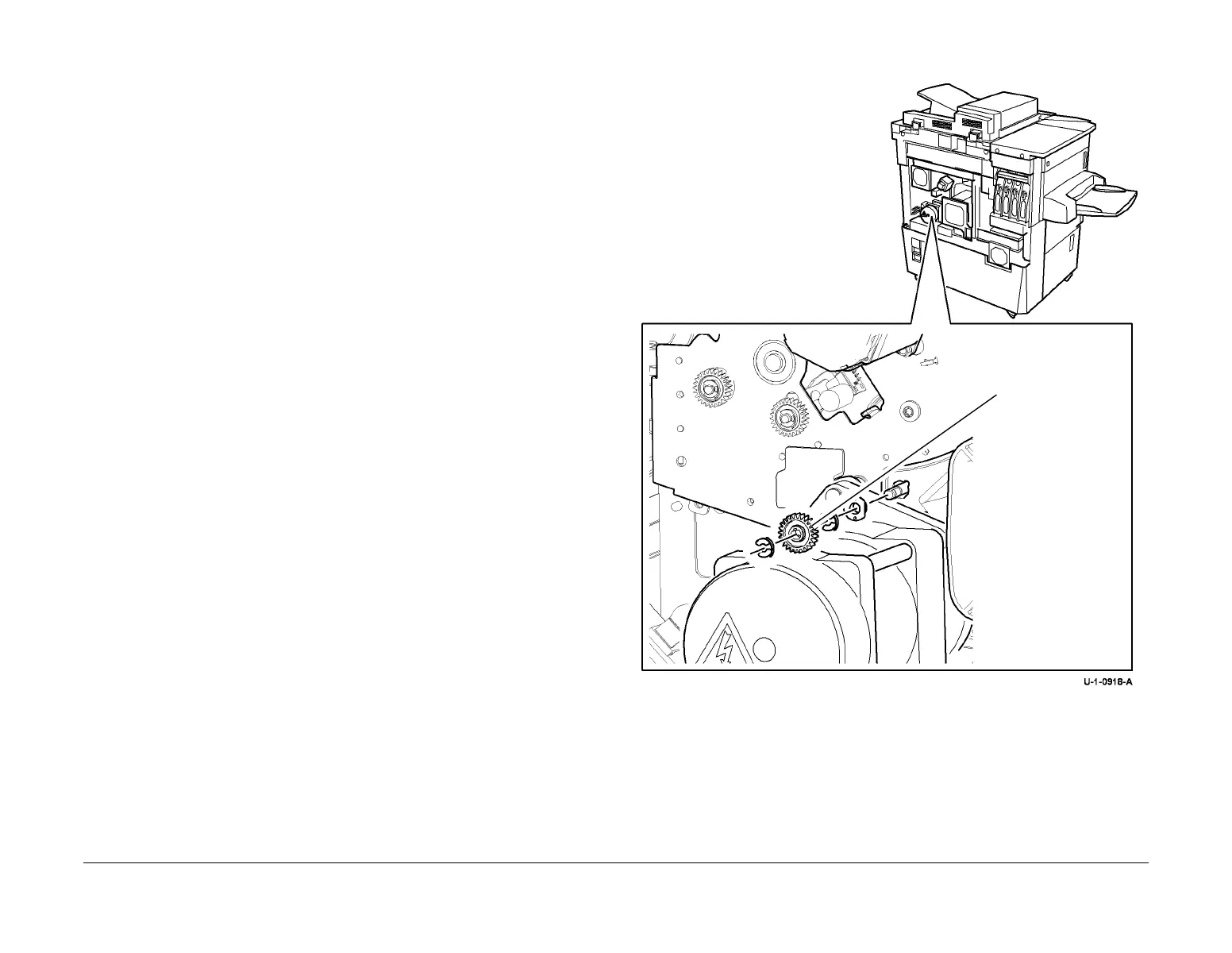

Figure 1 Gear removal
1
Remove the e-clips,
gear and bearing.
To Next Page
