February 2013
4-400
ColorQube® 9303 Family
ADJ 12.2-171
Repairs/Adjustments
ADJ 12.2-171 Tri-Folder Paper Settings
Purpose
The purpose of the procedure is to place the fold in the correct position on 8.5 x 11 inch and A4
paper.
Check
1. Ensure that the tri-folder is at the same height as the HVF, ADJ 12.1-171.
2. Run a copy job 4 sheets and check that the folds are in the correct place.
3. The paper should be folded into three equal parts and the folds parallel to the edge of the
paper. If necessary perform the adjustment.
Adjustment
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 14. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the front door, PL 12.200 Item 2.
2. Remove the front cover, PL 12.200 Item 12.
3. Remove the rear cover, PL 12.200 Item 3.
4. Set the folder to the appropriate paper size:
• To set the folder for A4 paper, Figure 1.
• To set the folder for 8.5 x 11 inch paper, Figure 2.
NOTE: Do not over loosen the adjuster screws. The adjusters can detach from the back-
stop. Make sure the position of the backstop changes when the adjusters are moved.

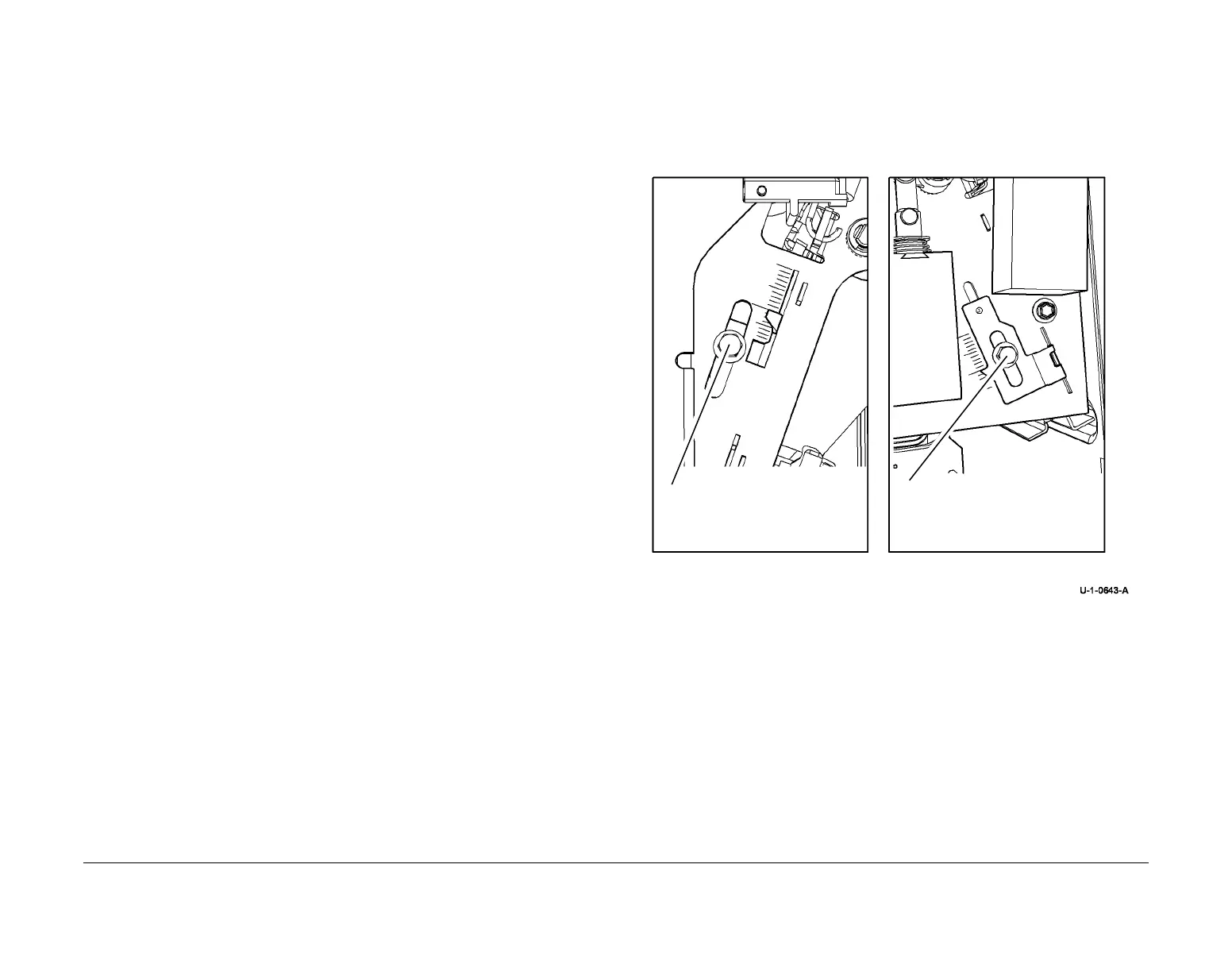

Figure 1 A4 paper setting
At the front
Loosen the screw and move the
adjuster to the A4 setting.
At the rear
Loosen the screw and move the
adjuster to the A4 setting.
To Next Page
