February 2013
4-264
ColorQube® 9303 Family
REP 71.2, REP 71.3
Repairs/Adjustments
4. Remove the paper width guide and the paper tray, Figure 3.

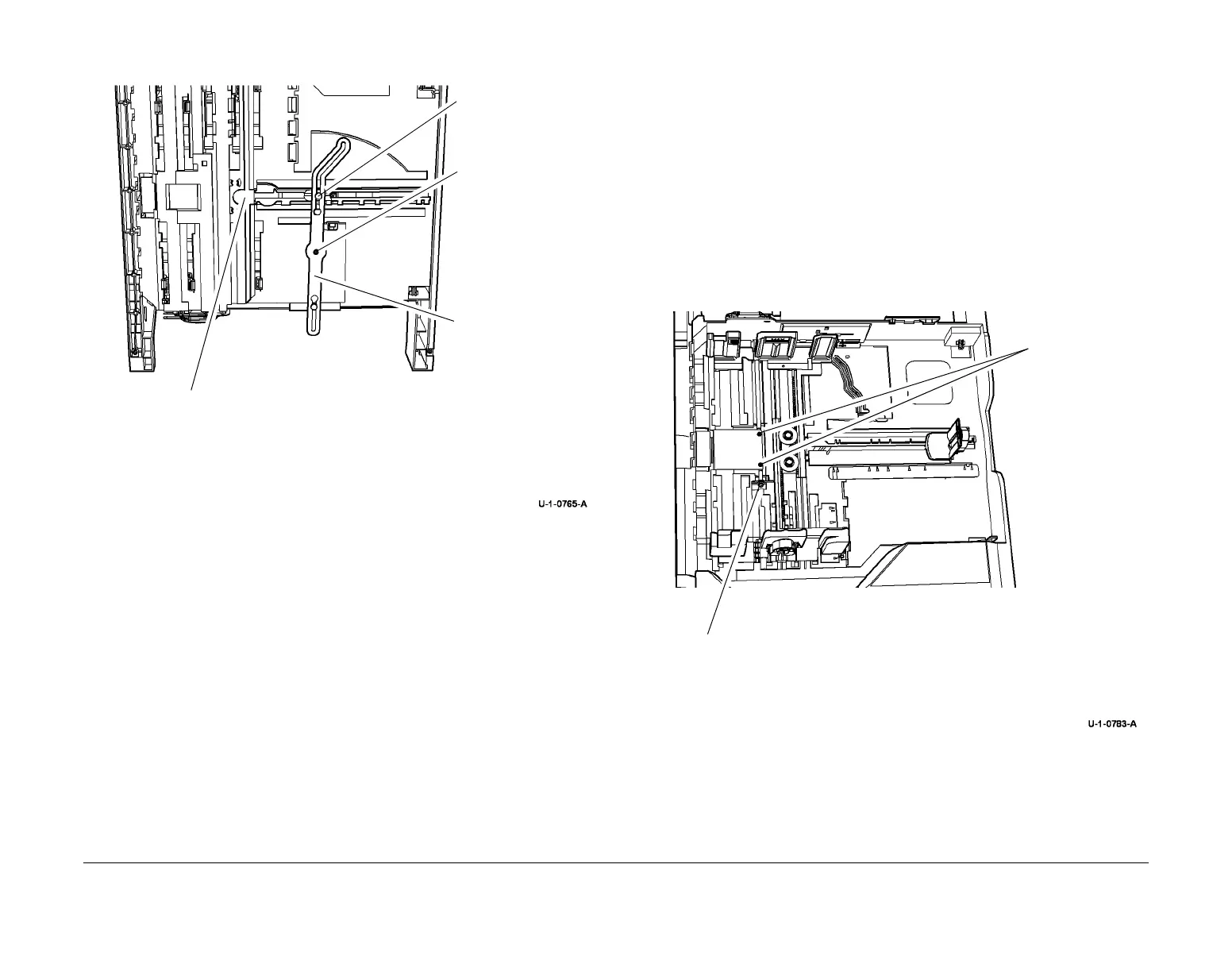

Figure 3 Remove the paper length guide
Replacement
1. The replacement is the reverse of the removal procedure.
REP 71.3 Tray 1 and Tray 2 Lift Gear Assembly
Parts List on PL 70.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the paper tray, REP 71.1.
2. Remove the paper lift plate, REP 71.2.
3. Remove the metal plate, Figure 1.
Figure 1 E-clip removal
1
Slide paper length
guide to middle
2
Remove the screw
3
Remove metal guide
4
Slide paper length guide to the opening
and remove the guide through the opening
1
Remove E-clip
2
Remove 2 screws
To Next Page
