February 2013
4-122
ColorQube® 9303 Family
REP 12.18-110
Repairs/Adjustments
REP 12.18-110 Paddles
Parts List on PL 12.25
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: This procedure shows the replacement of the paddles with the paddle wheel shaft
assembly installed. If necessary, remove the paddle wheel shaft assembly before replacing the
paddles. Refer to REP 12.12-110.
1. If necessary, lower bin 1. Enter code dC330 12-242 bin 1 elevator motor cycle. Press stop
when the bin has lowered.
2. Rotate the paddle until the two rubber blades are visible.
CAUTION
To ensure that the correct home position of the paddle wheel shaft is maintained, install the
new paddle wheels one at a time.
3. Squeeze the two rubber blades together and pull to remove the paddle wheel from the
shaft, Figure 1.

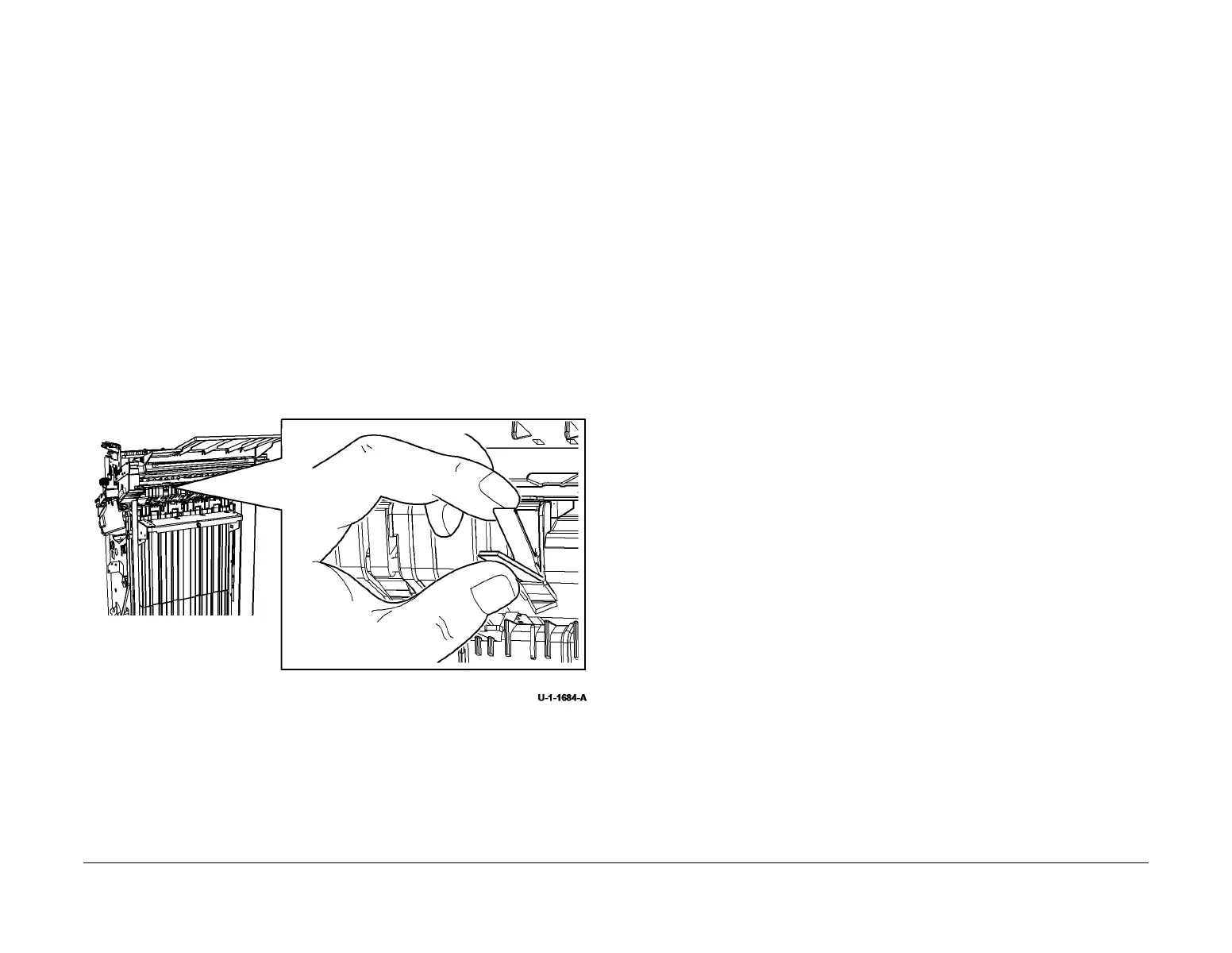

Figure 1 Paddle removal
Replacement
1. Hold the paddle wheel by the two rubber blades and clip onto the shaft.
To Next Page
