February 2013
4-98
ColorQube® 9303 Family
REP 10.24
Repairs/Adjustments
REP 10.24 Front and Rear Flexure Encoder
Parts List on PL 10.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. The stripper blade is very sharp and can cause injury.
1. Open the front door.
2. Remove the inner cover, PL 81.11 Item 2.
3. Remove the front cover and front flexure encoder, Figure 1.

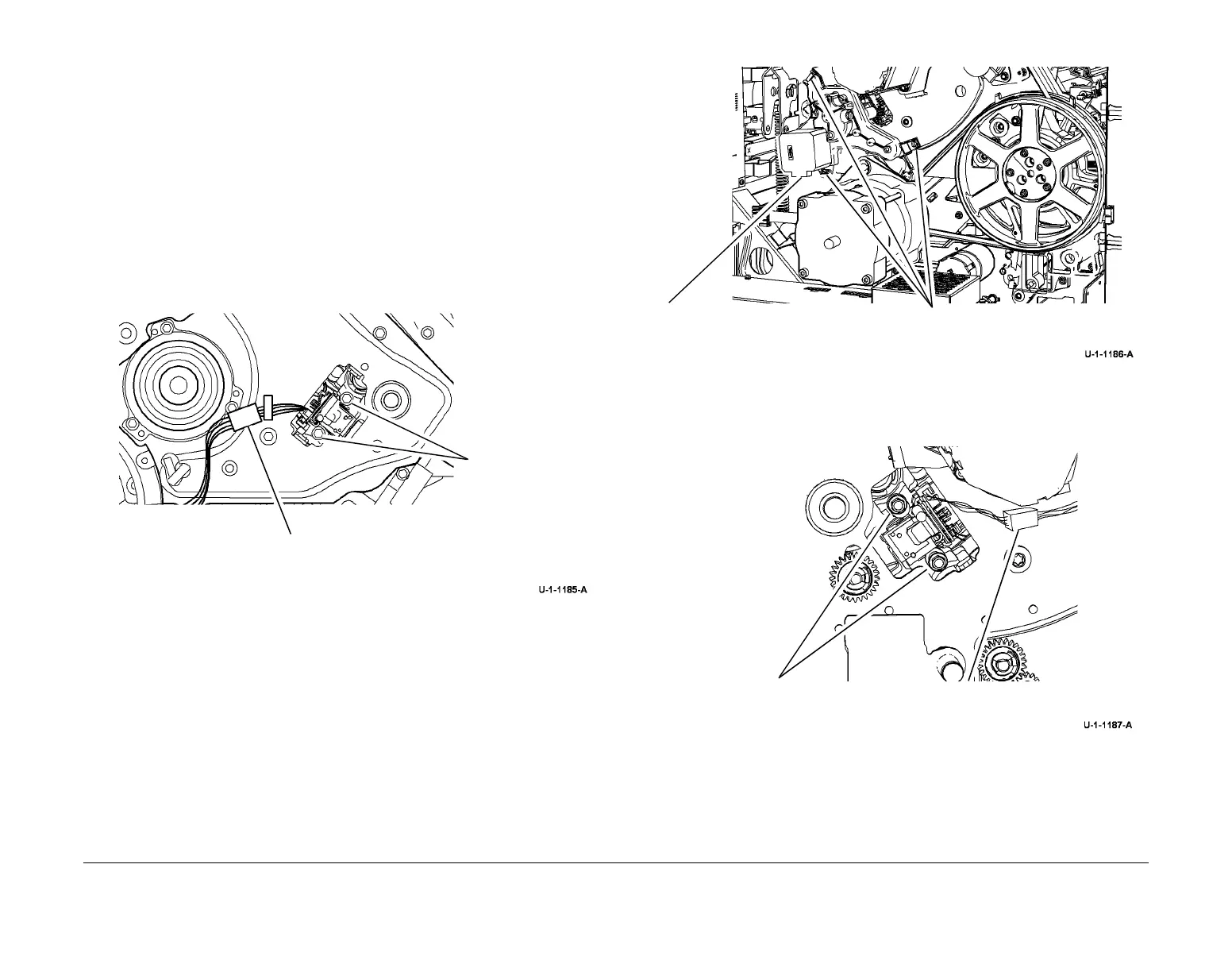

Figure 1 Front flexure encoder
4. Remove the rear cover, PL 81.10 Item 1.
5. Remove the post transfix motor (M4) and gearbox, Figure 2.
Figure 2 Post transfix motor and gearbox
6. Remove the rear flexure encoder, Figure 3.
Figure 3 Rear flexure encoder
Replacement
CAUTION
Take care not to damage or contaminate the flexure encoder.
1. Replacement is the reverse of the removal procedure.
2
Disconnect the harness
1
Remove 2 screws
3
Remove the sensor
1
Remove 3 screws
2
Disconnect motor harness
3
Remove the
motor and
gearbox
1
Disconnect the harness
2
Remove 2 screws
3
Remove the encoder
