February 2013
4-46
ColorQube® 9303 Family
REP 5.8
Repairs/Adjustments
REP 5.8 Takeaway and CVT Sensor
Parts List on PL 5.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the DADH top cover assembly, REP 5.1.
2. Remove the takeaway or CVT sensor, Figure 1.

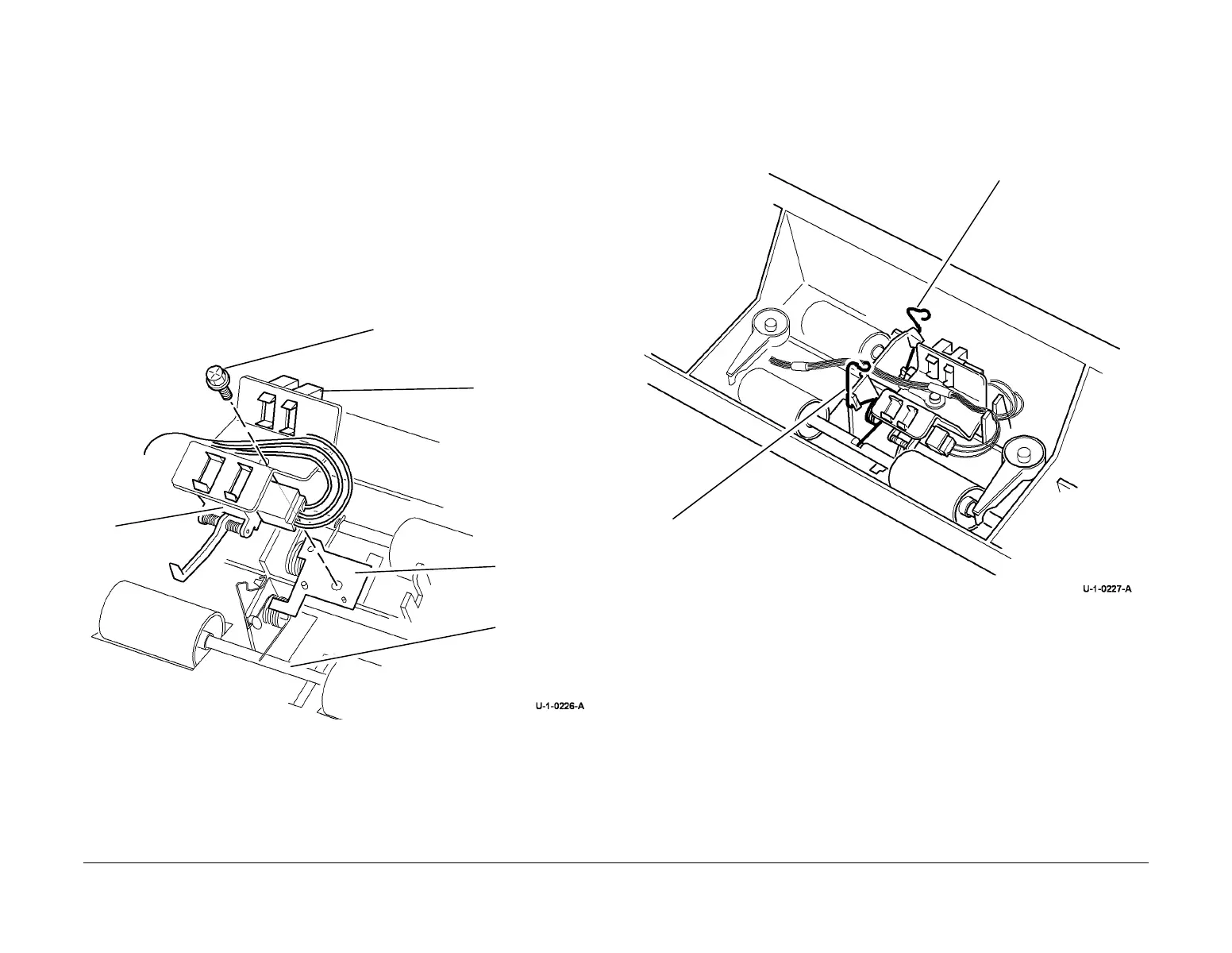

Figure 1 Takeaway and CVT sensors
Replacement
The replacement is the reverse of the removal procedure. Make sure the spring plate and idler
roll torsion springs are in the correct position. Also make sure that the CVT sensor actuator is
in the correct position below the CVT roll and the idler shaft. Refer to Figure 1 and Figure 2.
Then install the top cover assembly,
Figure 2 Torsion springs
1
Remove the screw.
CVT
sensor.
Takeaway sensor.
isconnect the correct PJ. Remove the
orrect sensor.
Spring plate.
CVT idler roll
shaft.
Takeaway idler roll
torsion spring
CVT idler roll torsion
spring
