February 2013
4-44
ColorQube® 9303 Family
REP 5.6, REP 5.7
Repairs/Adjustments

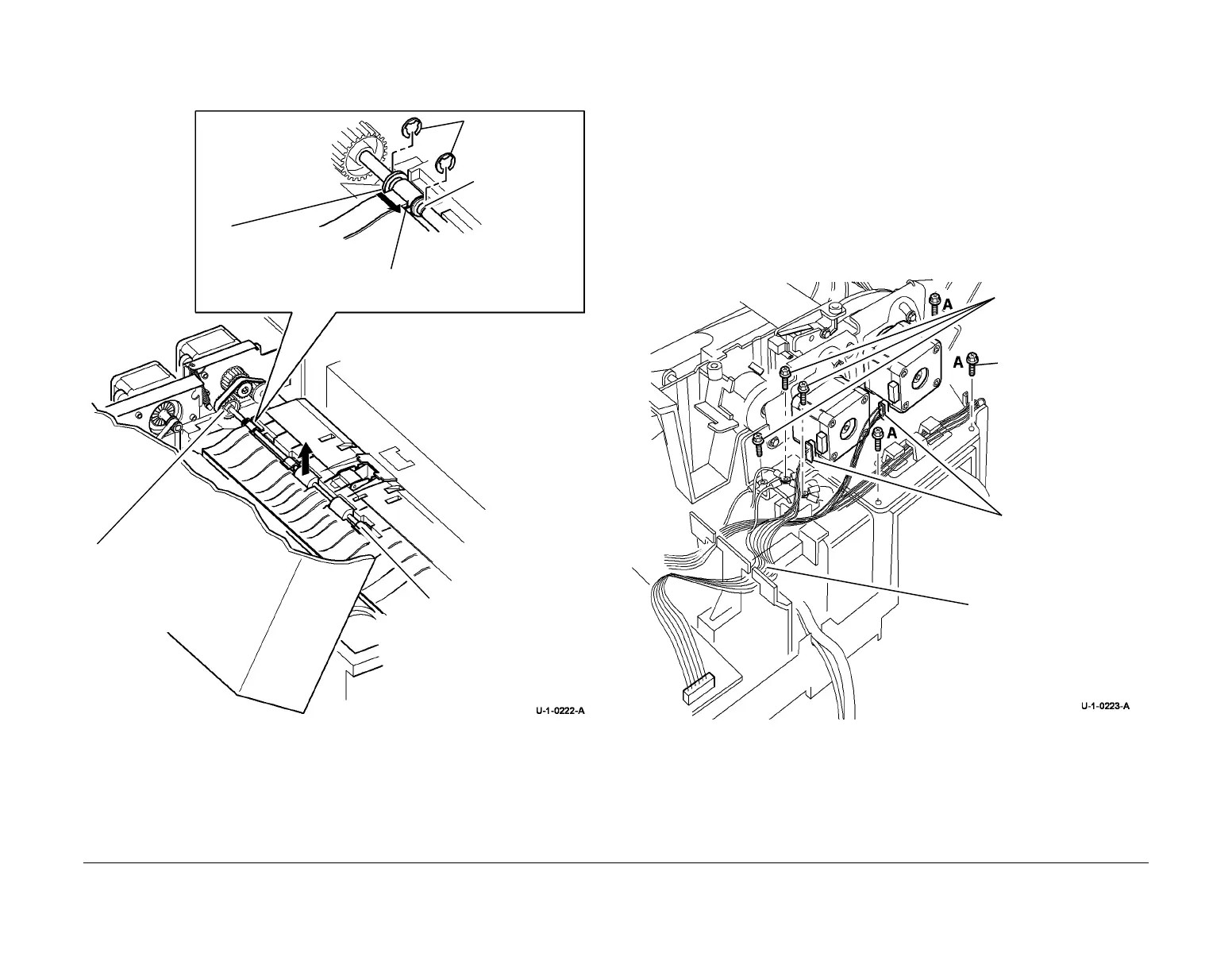

2. Remove the takeaway roll assembly, Figure 1.
NOTE: To release the tension of the drive belt on the feed motor, refer to ADJ 5.1.
Figure 1 Takeaway roll assembly
Replacement
The replacement is the reverse of the removal procedure. Make sure the spacers and E-clips
are installed correctly, refer to Figure 1.
REP 5.7 Duplex Solenoid
Parts List on PL 5.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the DADH rear cover, PL 5.10 Item 1.
2. Prepare to remove the drive assembly, Figure 1.
Figure 1 Drives assembly
NOTE: To release the tension on the drive belts, refer to ADJ 5.1.
Release the tension and
disengage the drive belt.
3
Slide the bearing forward.
2
Remove 2 E-clips.
4
Remove the takeaway roll
assembly.
Small spacers.
Large spacer.
2
Remove 3 self tapping
screws marked A.
4
Release the harnesses.
3
Disconnect PJ203 and
PJ204.
1
Disconnect 3 ground
harnesses.
To Next Page
