February 2013
4-71
ColorQube® 9303 Family
REP 10.7, REP 10.8
Repairs/Adjustments

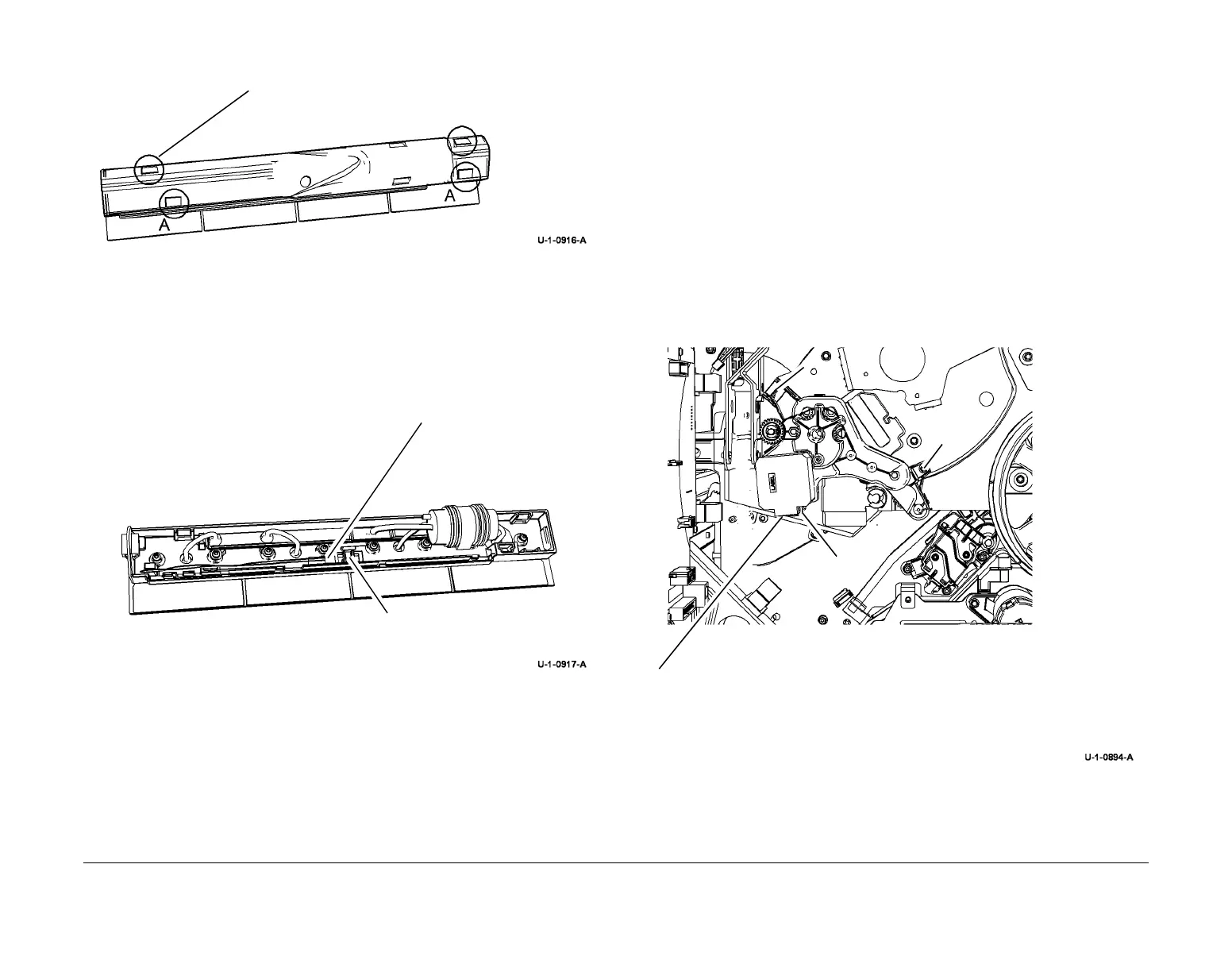

4. Remove the air pump cover, Figure 2.
Figure 2 Air pump cover removal
5. Remove the pre transfix sensor, Figure 3.
Figure 3 Sensor removal
Replacement
1. Replacement is the reverse of the removal procedure.
2. If the registration / preheat assembly is removed. Perform the dC625 Registration / Pre-
heat Calibration.
REP 10.8 Post Transfix Motor (M4) and Gearbox
Parts List on PL 10.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the rear cover, PL 81.10 Item 1.
2. Remove drum fan shroud, PL 94.20 Item 5.
3. Remove the drum motor and drive belt, REP 91.24.
4. Remove the post transfix motor (M4) (PL 10.10 Item 5) and gearbox (PL 10.10 Item 4),
Figure 1.
Figure 1 Drive motor (M4) and gearbox
Replacement
Replacement is the reverse of the removal procedure.
Release the clips marked A to
remove the cover.
1
Release the sensor clips.
2
Use the harness to remove
the sensor through the slot.
3
Disconnect the harness.
1
Disconnect harness.
2
Remove the screws marked A.
A
A
A
To Next Page
