February 2013
4-110
ColorQube® 9303 Family
REP 12.8-110, REP 12.9-110
Repairs/Adjustments
CAUTION
When removing and replacing the stapler traverse assembly, support the weight of the assem-
bly underneath the stapler and take care not to damage wiring.
5. Remove the stapler traverse assembly, Figure 2.

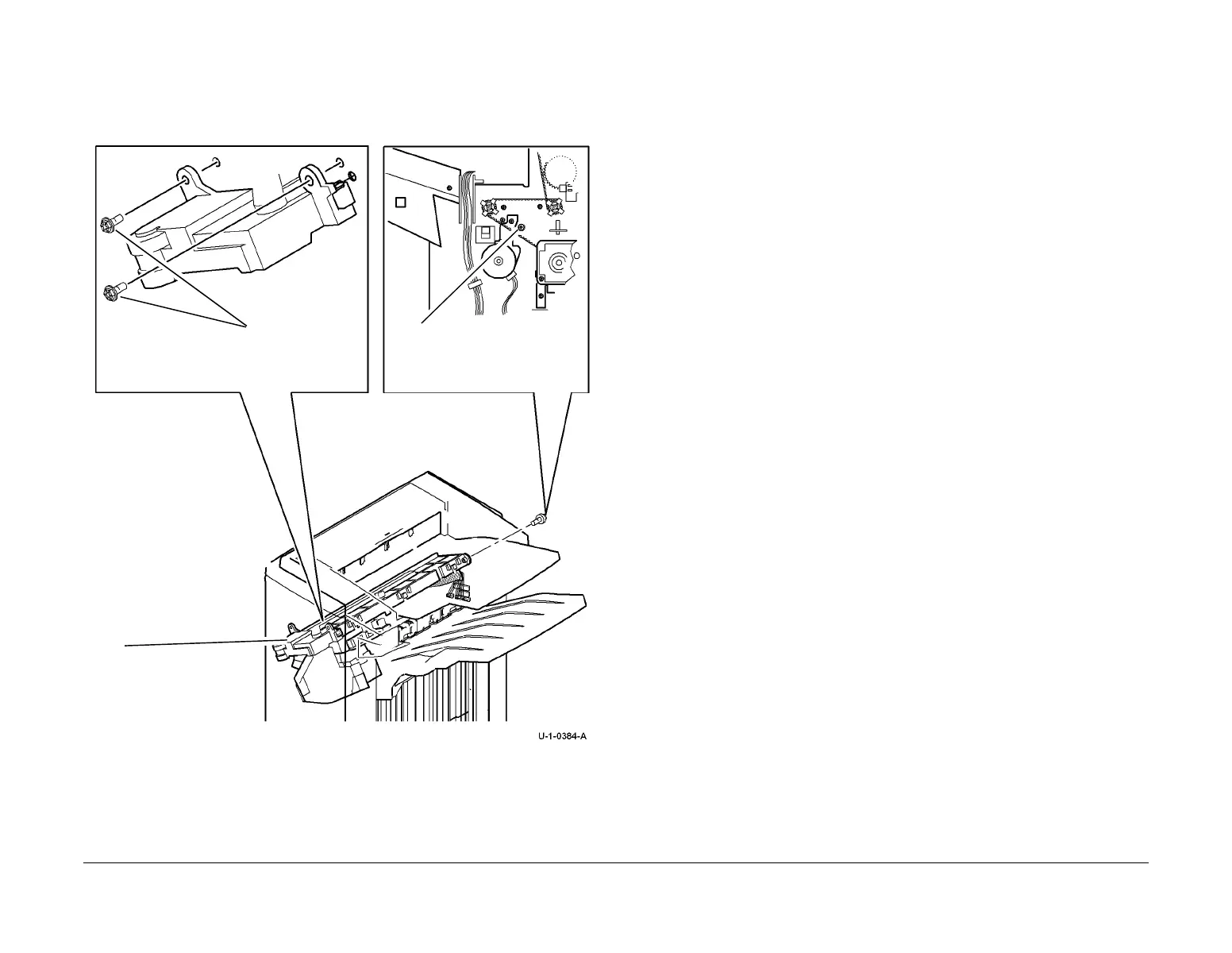

Figure 2 Removing the stapler traverse assembly
Replacement
1. Ensure the stapling traverse assembly is engaged on the front and rear locating dowels.
2. Reverse the removal procedure to replace the stapling unit.
REP 12.9-110 Staple Head Unit
Parts List on PL 12.55.
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the stapler traverse assembly, REP 12.8-110.
2. Place the stapler traverse unit upside-down
2
Remove 2 screws.
SEE CAUTION
3
Remove the stapler
traverse assembly.
SEE CAUTION.
1
Remove screw.
SEE CAUTION
To Next Page
