Xerox ColorQube 9303 Series Service Manual

February 2013
5-47
ColorQube® 9303 Family
PL 12.175
Parts Lists

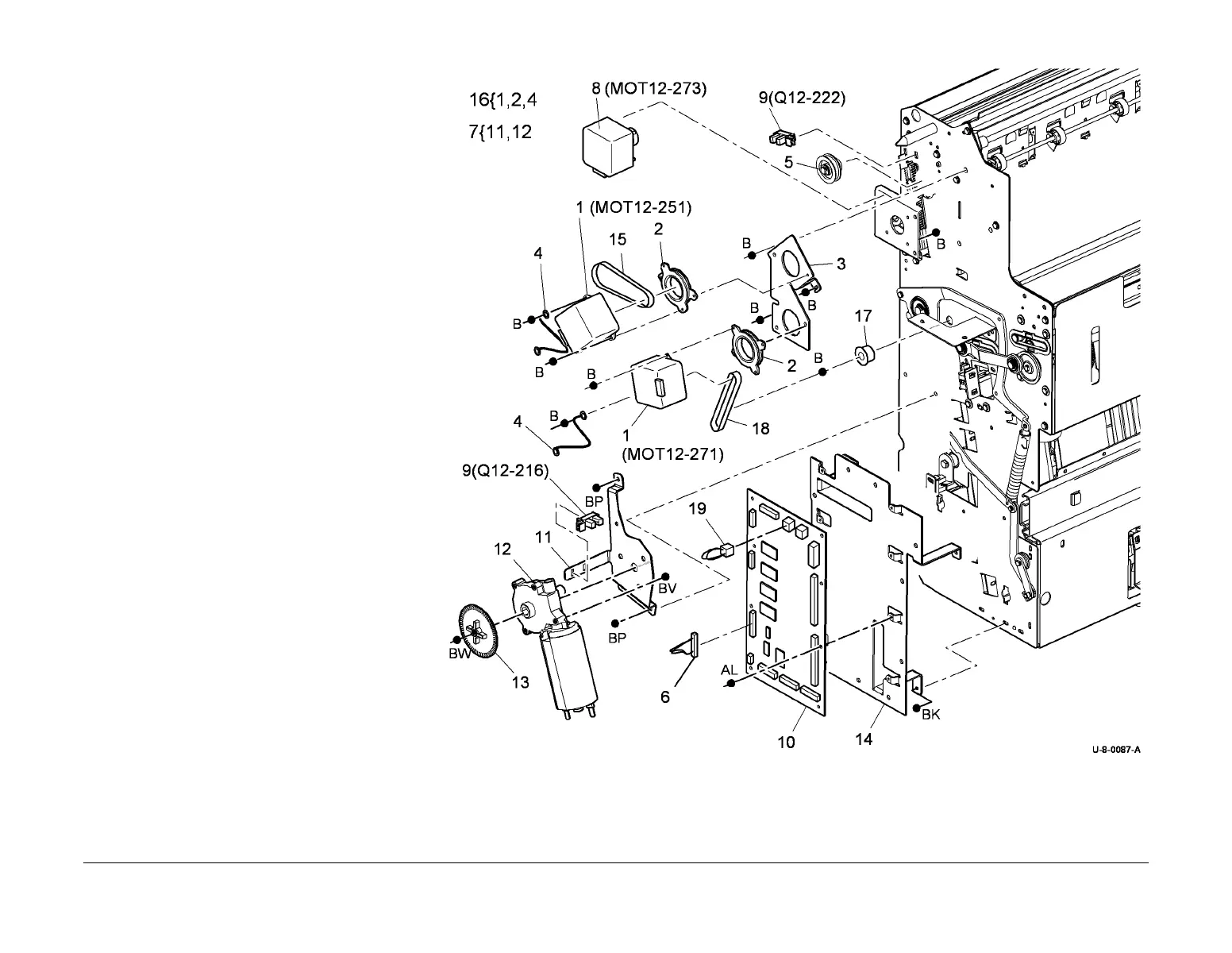

PL 12.175 HVF BM Crease Rolls Motor
and PWB
Item Part Description
1 127K43751 BM compiler motor (MOT12-251)/
BM flapper motor (MOT12-271)
(REP 12.25-171)
2 – Damper bracket (P/O PL 12.175
Item 16) (REP 12.25-171)
3 – Motor bracket (Not spared)
4 – Ground wire (P/O PL 12.175 Item
16)
5 007E69000 Gear (50T)/pulley (24T)
6 – Tri-folder logic cheat (PJ563) (Not
spared)
7 127K54680 BM Crease roll motor assembly
8 127K53620 BM crease roll gate motor (MOT12-
273) (REP 12.24-171)
9 107E22600 BM Crease roll gate home sensor
(Q12-222), BM Crease roll motor
encoder sensor (Q12-216)
10 960K52781 BM PWB (REP 12.17-171)
11 – Motor bracket (P/O PL 12.175 Item
12)
12 127K62560 BM Crease roll motor (MOT12-253)
(REP 12.19-171)
13 014E47460 BM Crease roll motor encoder
14 – Support bracket (Not spared)
15 023E25430 Compiler motor belt
16 127K55520 BM Compiler motor assembly (REP
12.25-171)
17 – BM flapper motor pulley (Not
spared)
18 – BM flapper motor drive belt (Not
spared)
19 – Tri-folder interlock cheat (PJ553)
(Not spared)
