ColorQube® 9303 Family
REP 12.22-171, REP 12.23-171
Repairs/Adjustments
5. Figure 1, remove the BM Entry Roll.
Figure 1 Roll removal
Replacement
Reverse the removal procedure to replace the BM entry roll.
NOTE: Tension the drive belt by loosening then tightening the screw, ADJ 12.10-171
REP 12.23-171 BM Entry Sensor
Parts List on PL 12.150.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Open the HVF BM front door and fully pull out the BM module.
2. Remove the crease blade knob (6d), PL 12.150 Item 4.
3. Remove the crease roll handle (6c), PL 12.150 Item 5.
4. Remove the BM front cover, PL 12.150 Item 3.

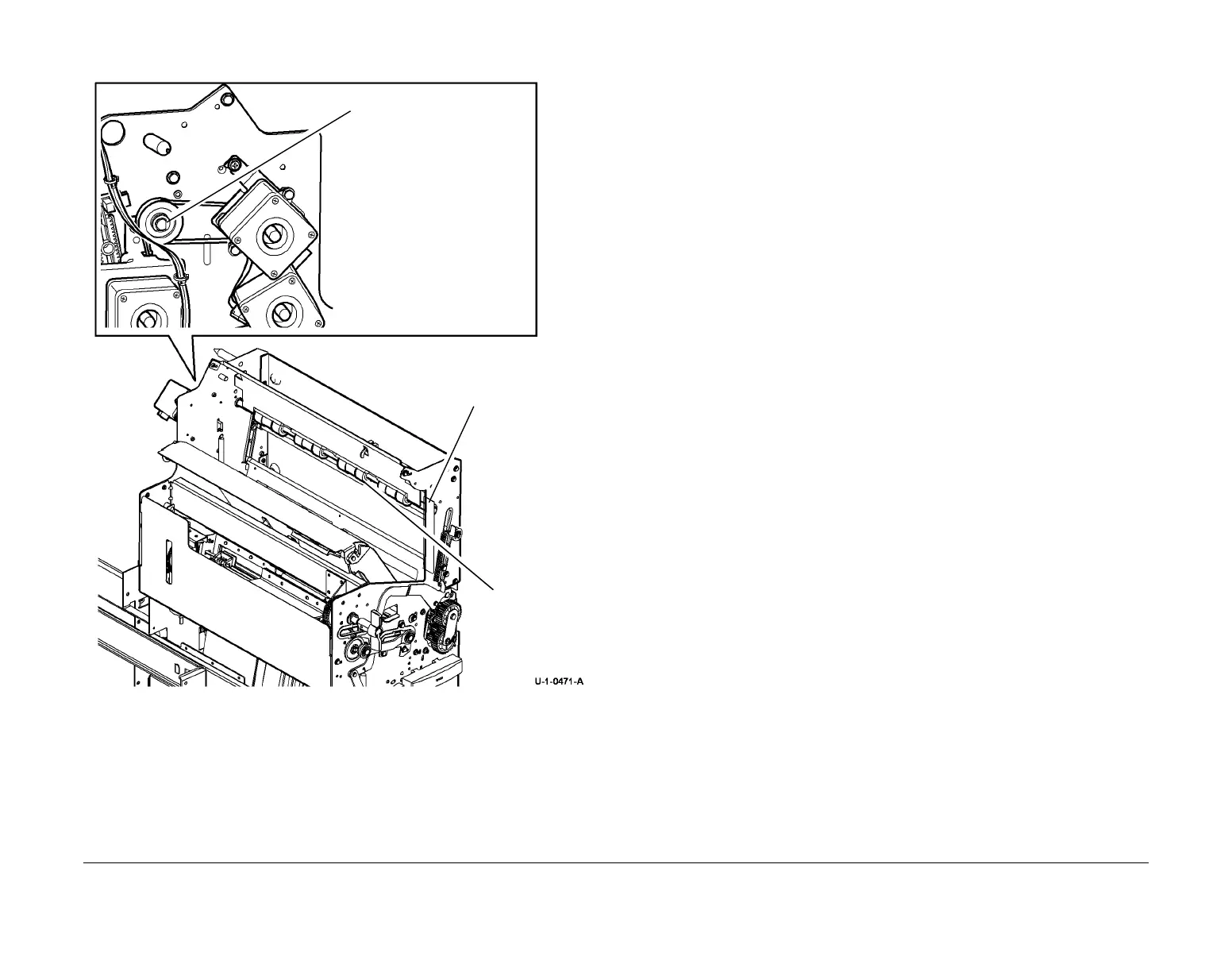

5. Figure 1, remove the BM entry sensor.
1
Remove E-clip, bearing,
pulley and belt.
2
Remove E-clip and
bearing.
3
Remove the
entry roll.
To Next Page
