Xerox ColorQube 9303 Series Service Manual

February 2013
4-260
ColorQube® 9303 Family
REP 62.13, REP 62.14
Repairs/Adjustments
REP 62.13 Scan Carriage Ribbon Cable
Parts List on PL 62.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the CVT glass, REP 62.3.
2. Remove the CVT ramp and document glass assembly REP 62.3.
3. Remove the scanner PWB cover, PL 62.16 Item 9.
4. Prepare to remove the scan carriage ribbon cable, PL 62.15 Item 4.
5. Figure 1. Remove the scan carriage ribbon cable.

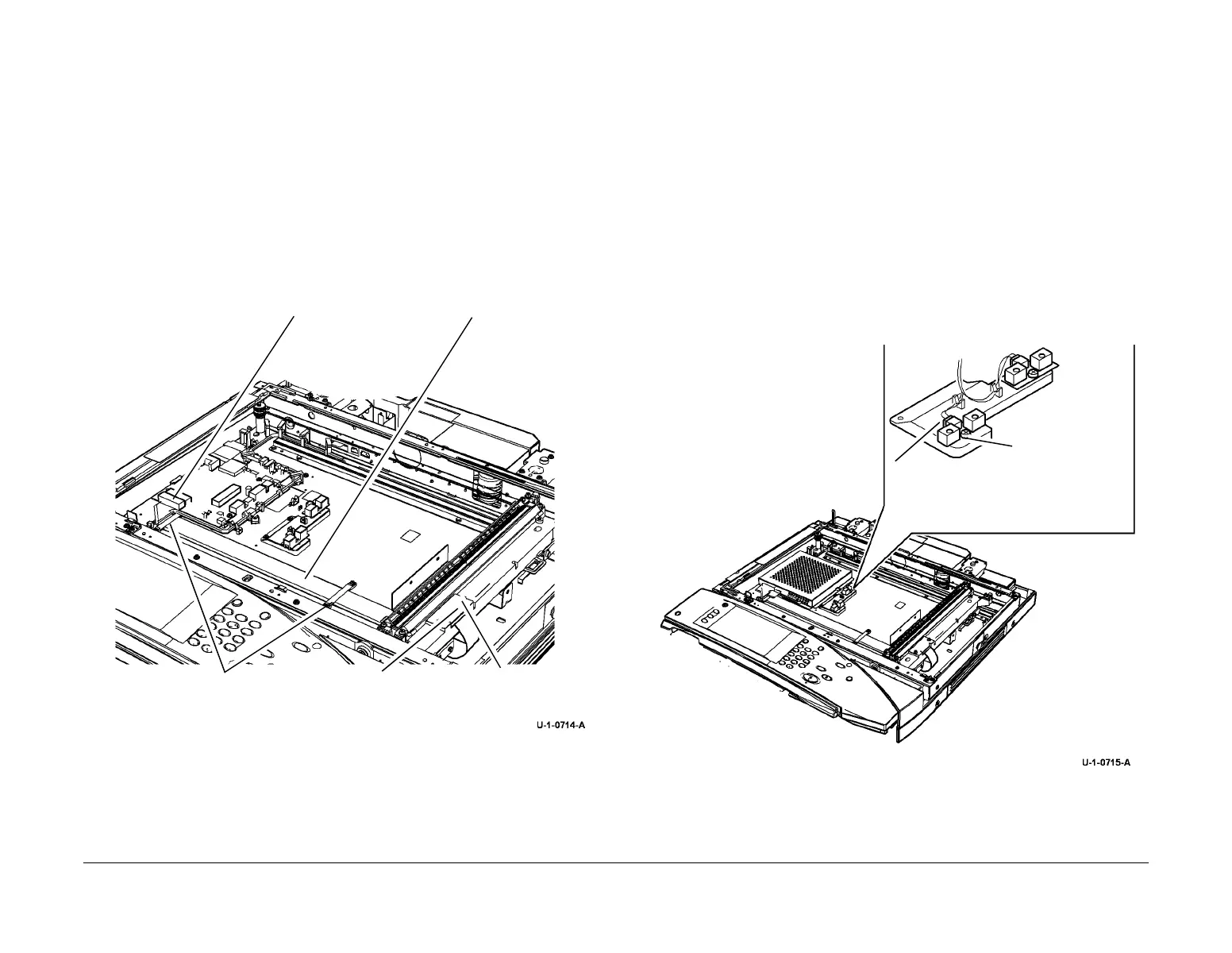

Figure 1 Ribbon cable removal
Replacement
CAUTION
Take care when replacing the scan carriage ribbon cable. The scan carriage ribbon cable is
easily damaged.
1. The replacement procedure is the reverse of the removal procedure.
2. Perform ADJ 62.1 Optics Cleaning.
REP 62.14 Document Size Sensor 1 and Document Size
Sensor 2
Parts List on PL 62.16
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the CVT glass, REP 62.3.
2. Remove the CVT ramp and document glass assembly REP 62.3.
3. Figure 1. Remove document size sensor 1 (Q62-251).
NOTE: The removal of document size sensor 1 (Q62-251) is shown. The removal of doc-
ument size sensor 2 (Q62-253) is identical.
Figure 1 Removal
Replacement
1. The replacement procedure is the reverse of the removal procedure.
2. Perform ADJ 62.1 Optics Cleaning.
1
Remove the
connector cove
r.
2
Disconnect the scan
carriage ribbon cable.
4
Disconnect the scan
carriage ribbon cable,
PJ928.
5
Remove the scan
carriage ribbon
cable.
3
Release two harness
retainers
1
Disconnect the
harness.
2
Remove 1 screw.
3
Remove the document size sensor.
