February 2013
5-36
ColorQube® 9303 Family
PL 12.120
Parts Lists

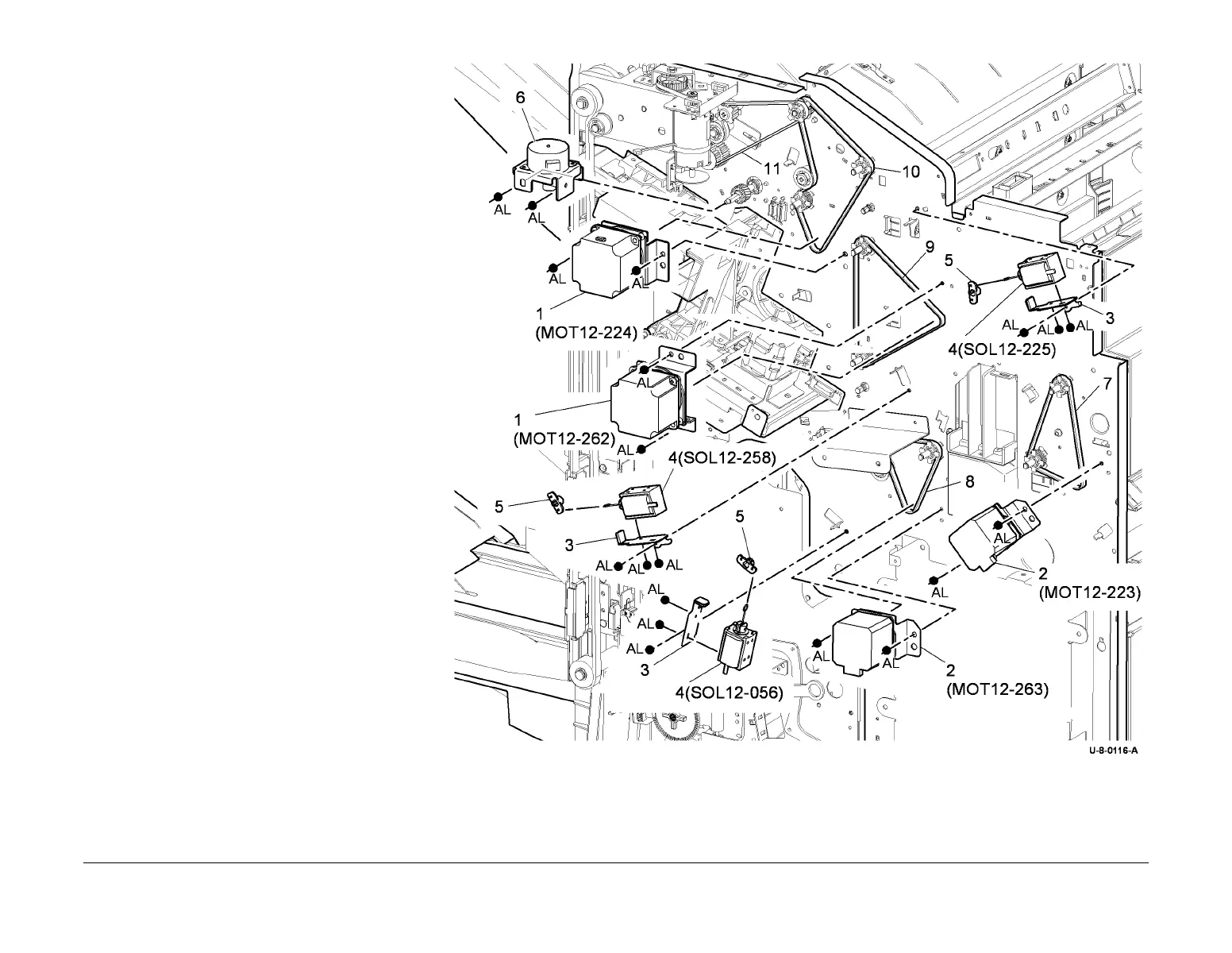

PL 12.120 HVF Main Drives
Item Part Description
1 127K56570 Buffer motor (MOT12-262) (REP
12.65-171)/Transport motor 2
(MOT12-224) (REP 12.66-171)
2 127K56560 Transport motor 1 (MOT12-
223)(REP 12.63-171)/Bypass feed
motor (MOT12-263)(REP 12.64-
171)
3 – Solenoid bracket (P/O PL 12.120
Item 4)
4 121K45290 BM diverter solenoid (SOL12-258)/
Exit diverter solenoid(SOL12-225)/
Set clamp solenoid (SOL12-056)
5 – Solenoid connector (Not spared)
6 127K56610 Paddle unit motor assembly
(MOT12-239) (REP 12.48-171)
7 – Transport motor 1 drive belt (Not
spared)
8 – Bypass feed motor drive belt (Not
spared)
9 – Buffer feed motor drive belt (Not
spared)
10 – Transport motor 2 drive belt (A)
(Not spared)
11 – Transport motor 2 drive belt (B)
(Not spared)
To Next Page
