ColorQube® 9303 Family
REP 82.7
Repairs/Adjustments
REP 82.7 Tray 5 Takeaway Roller
Parts List on PL 81.45, PL 81.46
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the rear cover, REP 75.8.
2. Remove the top cover, REP 75.8.
3. Remove the transport drive belt, REP 82.6.
4. Disconnect the tray 5 door switch harness, PL 75.60 Item 6.
5. Prepare to remove the upper feeder assembly, Figure 1.

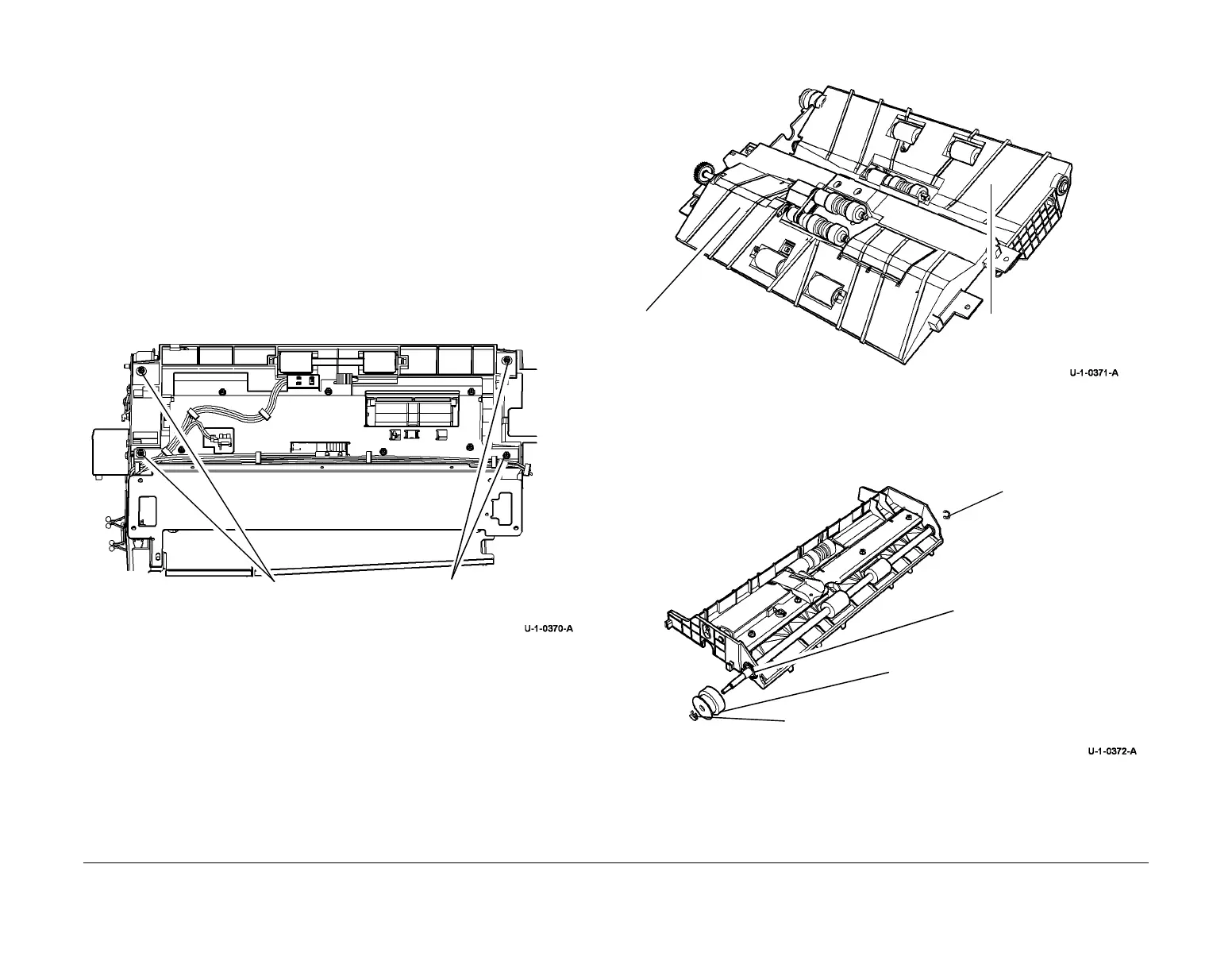

Figure 1 Preparation
6. Lift off the upper feeder assembly, then remove the lower feed assembly, Figure 2.
Figure 2 Remove lower feed assembly
7. Remove the one way pulley clutch, Figure 3.
Figure 3 Remove the one-way pulley clutch
2
Remove two screws
1
Remove two screws
3
Lift the upper feeder
assembly
1
Lift the upper feed
assembly
2
Remove the lower feed
assembly
3
Remove the E-clip
and bearing
2
Remove the one way pulley clutch
1
Remove the E-clip
4
Remove the E-clip
and bearing
To Next Page
