February 2013
4-299
ColorQube® 9303 Family
REP 81.12, REP 81.13
Repairs/Adjustments
REP 81.12 Tray 5 Feed Motor
Parts List on PL 81.40
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the rear cover, PL 75.60 Item 9.
2. Remove tray 5 feed motor, Figure 1.

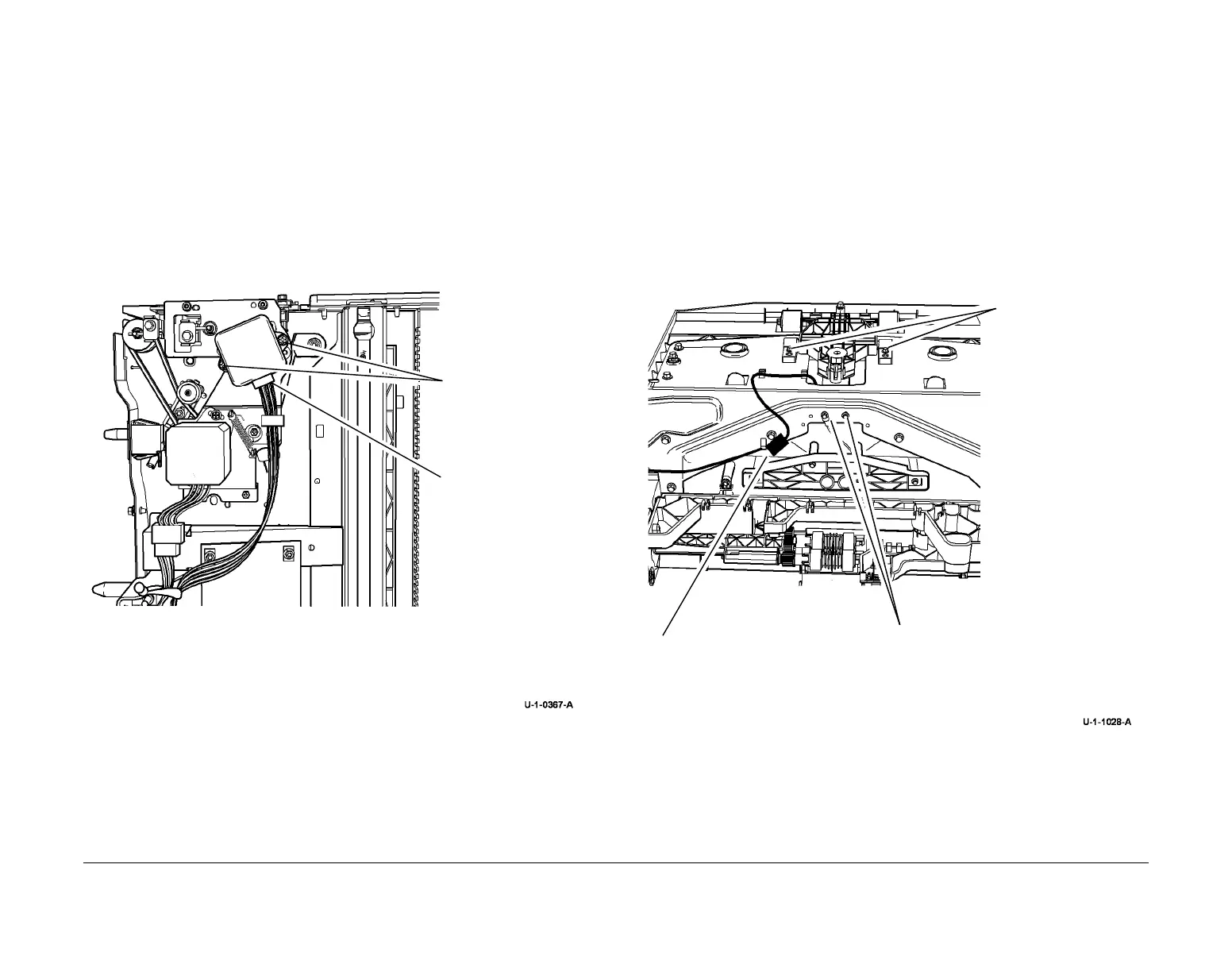

Figure 1 Remove the feed motor
Replacement
1. The replacement is the reverse of the removal procedure.
REP 81.13 Nip D Release Solenoid
Parts List on PL 70.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the upper left door cover, PL 70.30 Item 14.
2. Remove the bypass top cover, PL 70.30 Item 9.
3. Remove the nip D release solenoid, Figure 1.
Figure 1 Solenoid removal
Replacement
1. The replacement is the reverse of the removal procedure.
1
Remove two screws
2
Disconnect the harness
3
Remove the motor
1
Remove 2 screws, then
the nip release link arm
NOTE: There is a sprin
under the link arm.
3
Disconnect the harness,
then remove the nip D
release solenoid.
2
Remove the 2 screws and
ground lead.
