Xerox ColorQube 9303 Series Service Manual

February 2013
4-67
ColorQube® 9303 Family
REP 10.4, REP 10.5
Repairs/Adjustments
REP 10.4 Front Transfix Motor
Parts List on PL 10.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the exit paper path, REP 10.20.
2. Remove the front transfix motor, Figure 1.

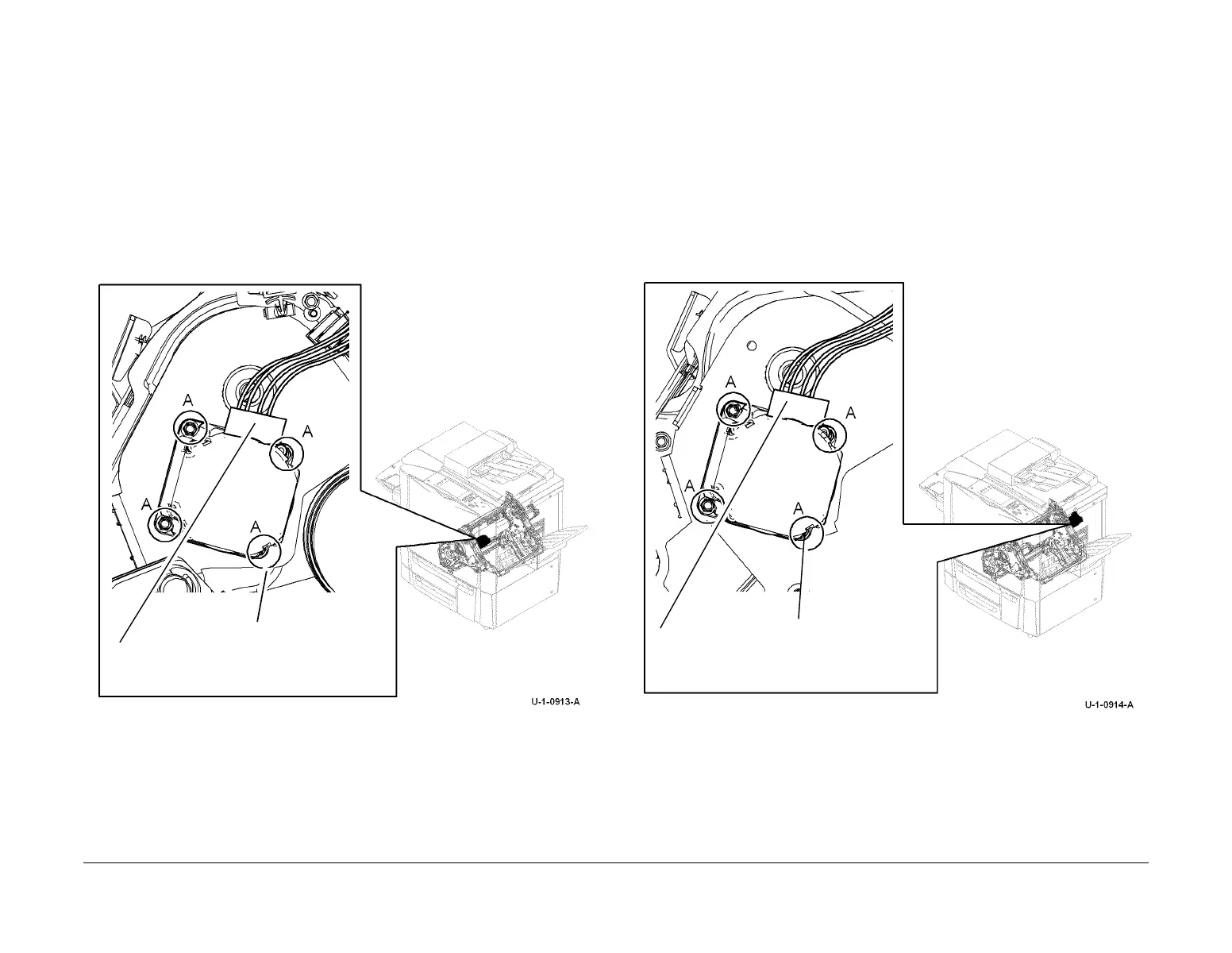

Figure 1 Front transfix motor removal
Replacement
1. Replacement is the reverse of the removal procedure.
REP 10.5 Rear Transfix Motor
Parts List on PL 10.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the rear cover, PL 81.10 Item 1.
2. Remove the rear transfix motor, Figure 1.
Figure 1 Rear transfix motor removal
Replacement
1. Replacement is the reverse of the removal procedure.
1
Disconnect 2 harnesses.
2
Remove screws
marked A, then remove
the motor.
1
Disconnect 2 harnesses.
2
Remove screws
marked A then remove
the motor.
