February 2013
4-72
ColorQube® 9303 Family
REP 10.9
Repairs/Adjustments
REP 10.9 Stripper Solenoid Assembly
Parts List on PL 10.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Use care when working near the drum. The drum can be damaged easily, which will cause
print quality defects.
1. Manually unlock the stripper gate and baffle assembly, refer to GP 31.
2. Open the stripper gate, GP 31.
3. Remove the rear cover, PL 81.10 Item 1.
4. Remove the drum drive motor and belt, REP 91.24.
5. Remove stripper solenoid, Figure 1.

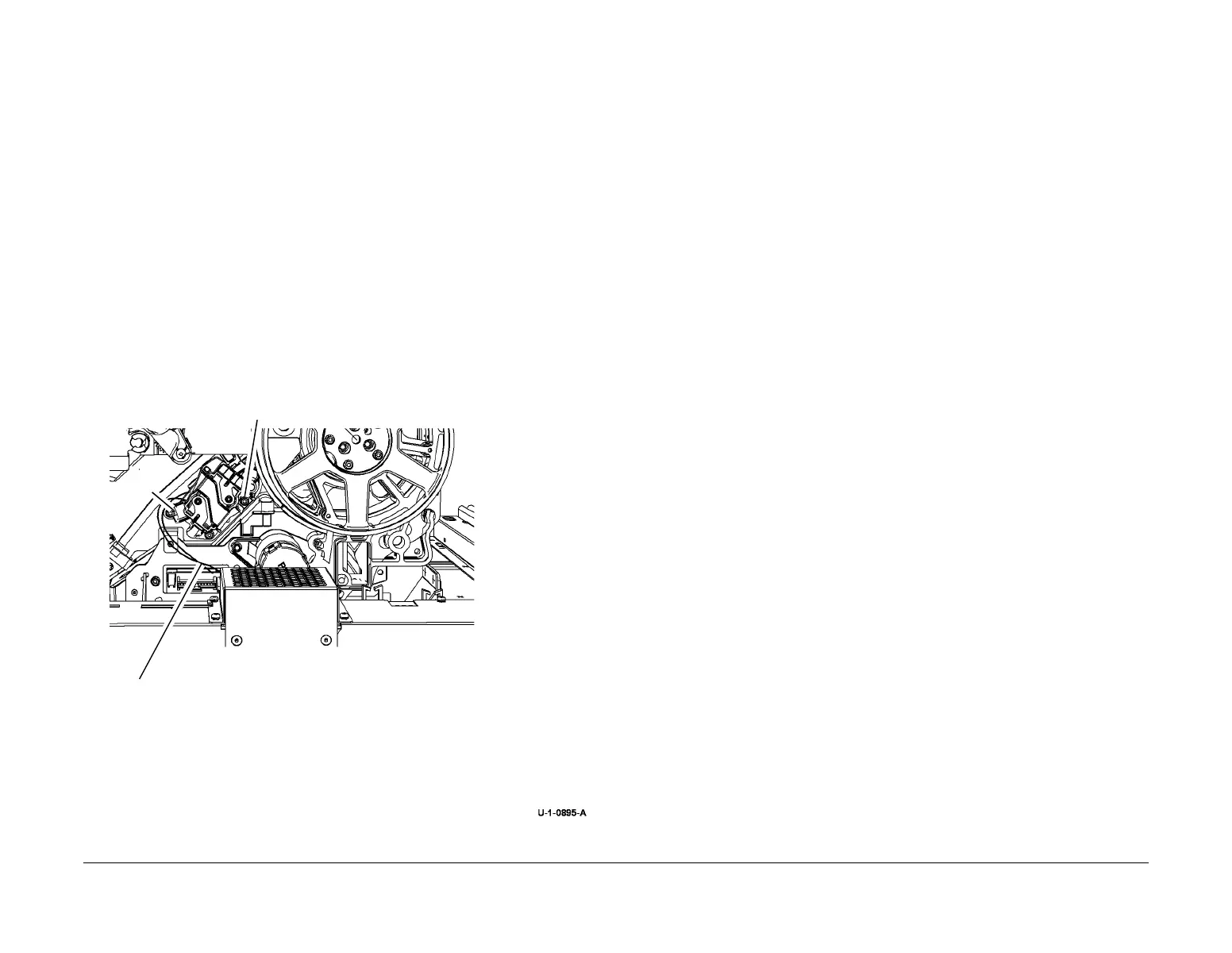

Figure 1 Stripper solenoid removal
Replacement
Replacement is the reverse of the removal procedure.
1
Remove 2 screws marked A.
2
Disconnect the inline connector,
then remove the solenoid assembly.
A
A
To Next Page
