ColorQube® 9303 Family
PL 92.10
Parts Lists

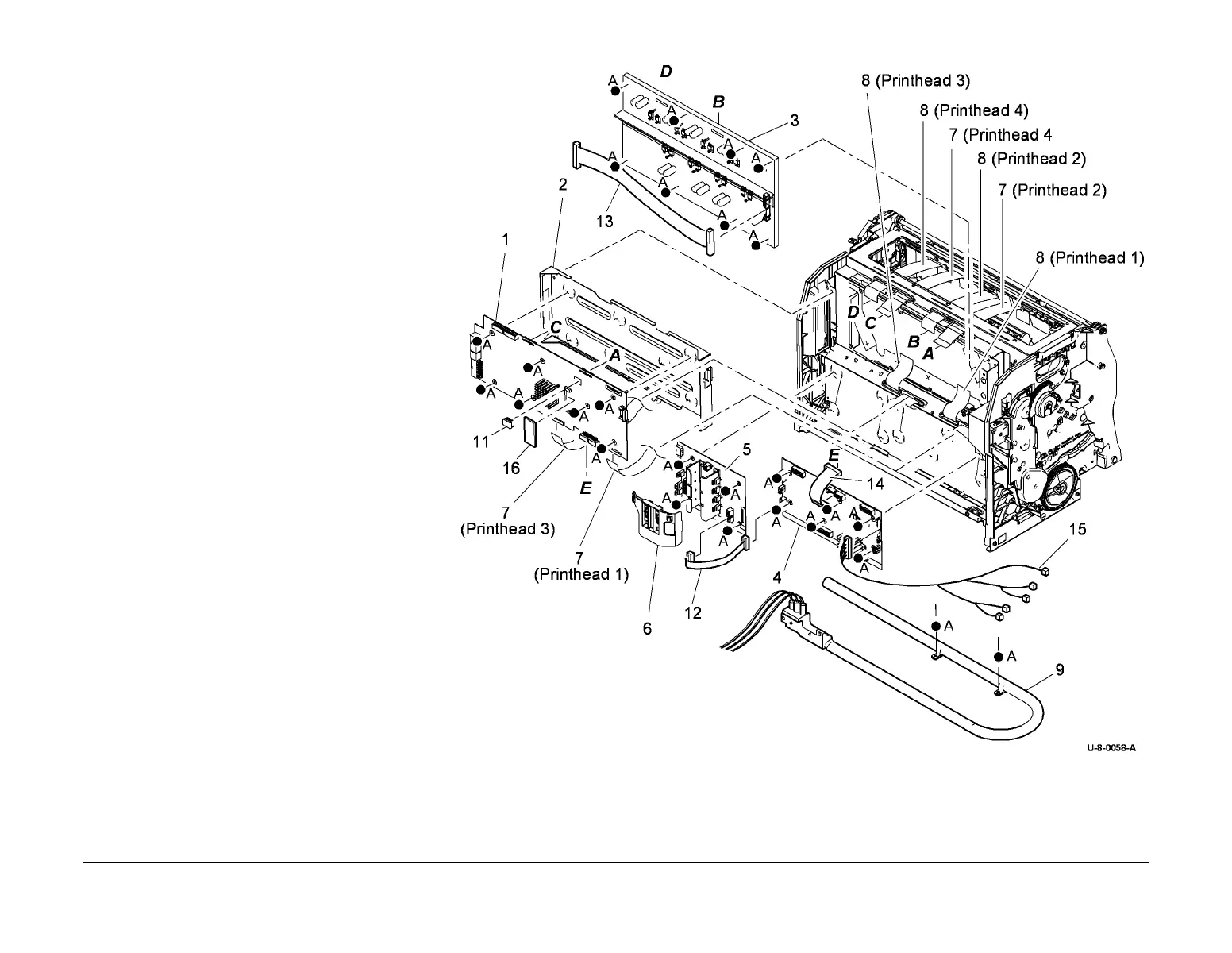

PL 92.10 Marking Unit Electronic
PWB's
Item Part Description
1 960K66590 IME Controller PWB (REP 3.1)
2 – Mounting Plate (P/O PL 92.10 Item
1)
3 960K46471 Quad Wave amp PWB (REP 3.2)
4 960K46440 Marking unit driver PWB (REP 3.4)
5 960K46451 Marking unit heater PWB (REP 3.3)
6 – Clamp (Not spared)
7 – Video cable (Type A) (P/O PL 31.11
Item 29) (see NOTE)
– 117E37130 Video Cable (Type B) (see NOTE)
8 – Wave amp cable (Type A) (P/O PL
31.11 Item 13) (see NOTE)
– 117E37140 Wave amp cable (Type B) (see
NOTE)
9 130E18790 Service loop (REP 91.11)
10 – Not used
11 237E23880 8 Pin NVRAM
12 117E35680 Marking unit heater PWB cable
(PJ901)
13 117E35800 Quad Wave amp PWB cable
(PJ590)
14 117E35670 Marking unit driver PWB cable
(PJ203)
15 117E35730 Marking unit front components
harness (PJ304)
16 133K27860 Memory module (256 MB)
NOTE: To identify the type of cable, refer to GP 46.
