February 2013
4-84
ColorQube® 9303 Family
REP 10.15, REP 10.16
Repairs/Adjustments
Replacement
1. Replacement is the reverse of the removal procedure.

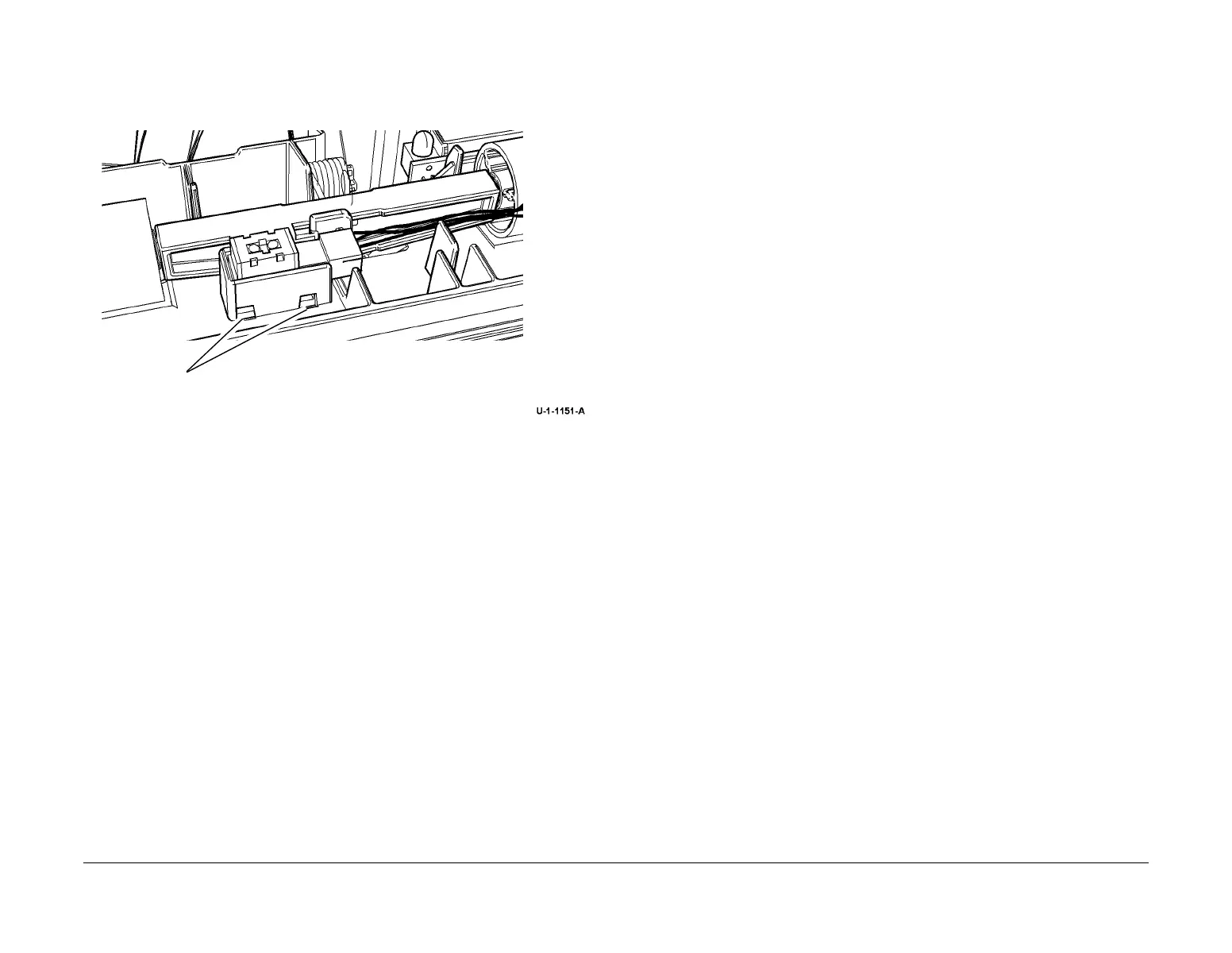

2. Ensure that the lugs on the sensor are located correctly in the sensor holder, Figure 3.
Figure 3 Sensor location
REP 10.16 Exit Sensor (15)
Parts List on PL 10.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the exit paper path, REP 10.20.
1
Check the lugs secures the sensor in position
To Next Page
