Xerox ColorQube 9303 Series Service Manual

February 2013
5-105
ColorQube® 9303 Family
PL 94.20
Parts Lists

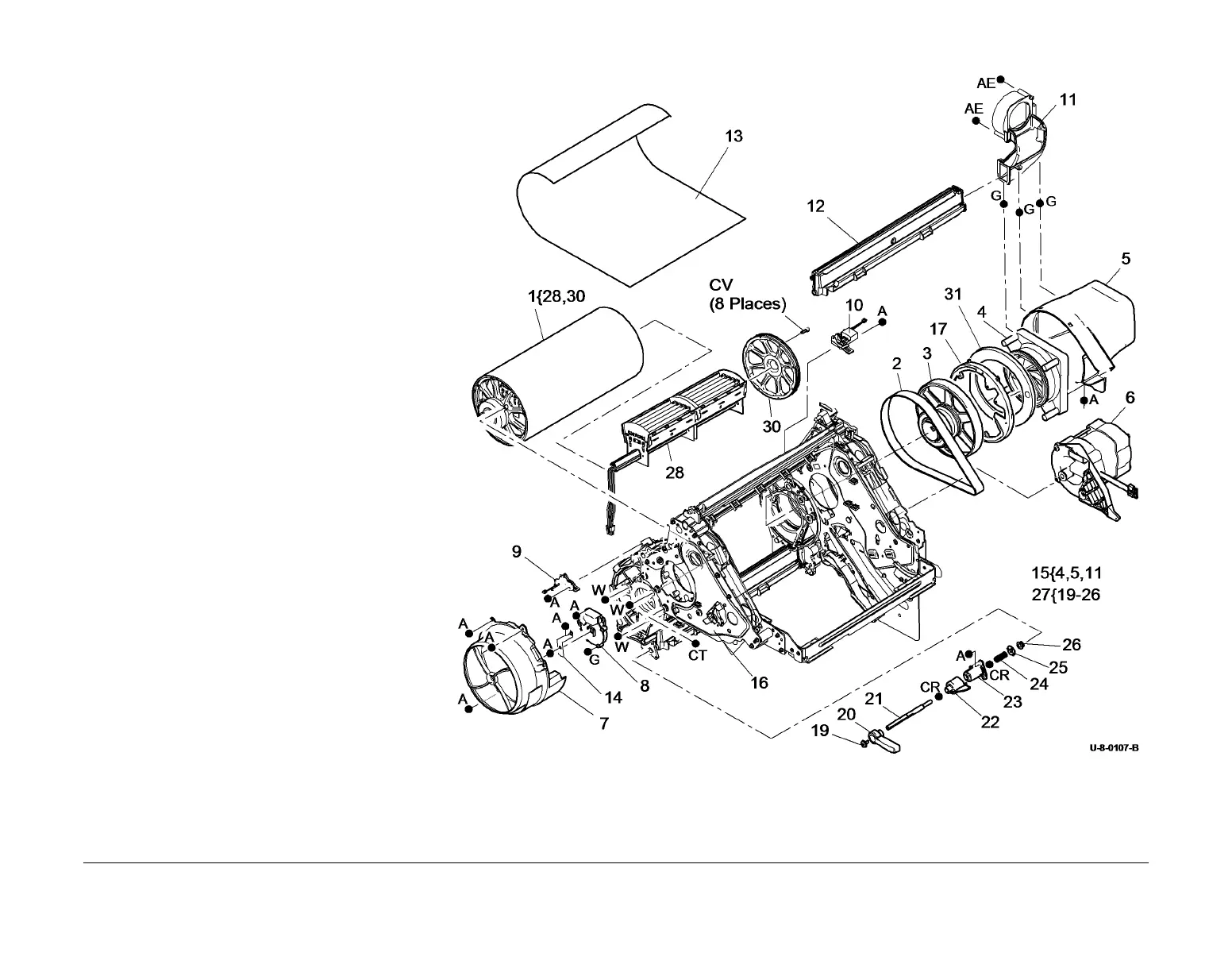

PL 94.20 Drum Assembly
Item Part Description
1 – Drum (P/O PL 31.11 Item 11) (REP
91.25)
2 023E32380 Drum belt (REP 91.24)
3 020K20552 Drum pulley (REP 91.34)
4 – Drum fan (MOT42-064) (P/O PL
94.20 Item 15)
5 – Drum fan shroud (P/O PL 94.20
Item 15) (See NOTE)
6 020K20510 Drum drive motor (MOT94-009)
(REP 91.24)
7 054E43470 Front drum shroud
8 020K20520 Drum position encoder assembly
(Q94-101) (REP 91.30)
9 130K15841 Front drum thermistor (REP 91.35)
10 130K15860 Rear drum thermistor (REP 91.35)
11 – Abatement fan assembly (MOT42-
062) (P/O PL 94.20 Item 15)
12 054E43480 Abatement plenum (REP 91.36)
13 – Drum protector cover (REF: PL
26.11 Item 11)
14 – Drum encoder bracket (Not spared)
15 127K68890 Drum and abatement fan assembly
16 801K37690 Front drum frame assembly (REP
91.25)
17 – Mounting bracket (Not spared)
18 – Not used
19 – Locating screw (P/O PL 94.20 Item
27)
20 – Handle (P/O PL 94.20 Item 27)
21 – Shaft (P/O PL 94.20 Item 27)
22 – Latch cam (P/O PL 94.20 Item 27)
23 – Latch base (P/O PL 94.20 Item 27)
24 – Spring (P/O PL 94.20 Item 27)
25 – Retaining washer (P/O PL 94.20
Item 27)
26 – Bearing (Not spared)
27 604K60830 Cleaning unit handle kit
28 – Drum heater (P/O PL 94.20 Item 1)
29 – Not used
30 – Rear drum support (P/O PL 94.20
Item 1)
31 – Drum fan retaining plate (P/O PL
94.20 Item 15)
NOTE: HFSI. This component must be cleaned at regular
intervals refer to SCP 4 subsystem maintenance. To reset the
HFSI count go to dC135.
