February 2013
4-176
ColorQube® 9303 Family
REP 12.39-171
Repairs/Adjustments
REP 12.39-171 HVF BM Diverter Gate
Parts List on PL 12.125.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the HVF front door, REP 12.1-171.
2. Remove the HVF top cover, REP 12.1-171.
3. Remove the HVF front cover, REP 12.1-171.
4. Remove the HVF rear cover, REP 12.1-171.

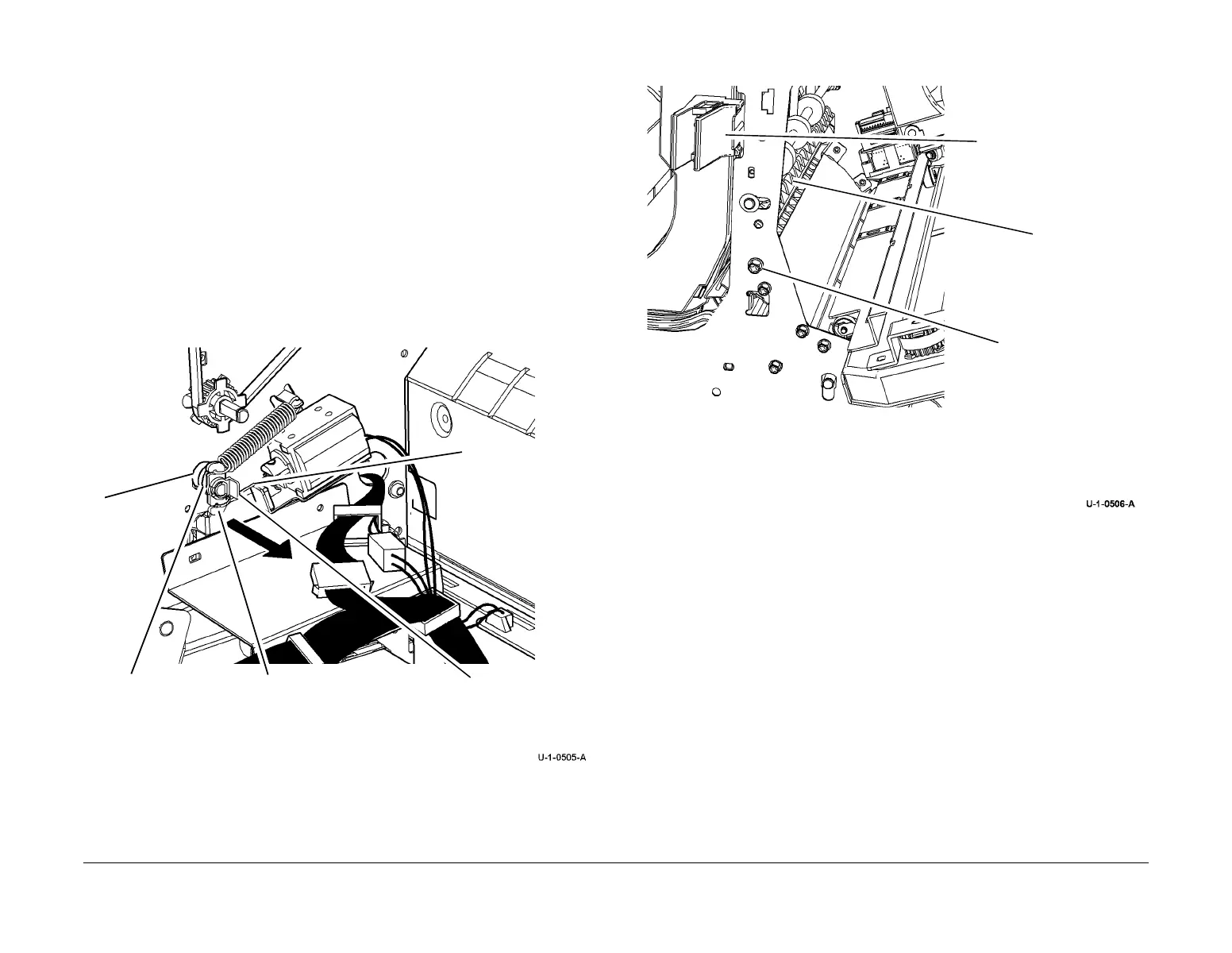

5. Figure 1. prepare to remove the BM diverter gate.
Figure 1 Removal preparation
6. Figure 2. Remove the BM diverter gate.
Figure 2 Diverter removal.
Replacement
The replacement procedure is the reverse of the removal procedure.
1
Pull the solenoid arm
from the shaft.
2
Remove the K-L clip.
5
Remove the
bush.
REAR VIEW
3
Remove the pivot arm.
4
Remove the spacers.
1
Open Guide 5b.
2
Remove the
pivot screw.
3
Remove the
diverter.
To Next Page
