February 2013
4-106
ColorQube® 9303 Family
REP 12.6-110
Repairs/Adjustments
REP 12.6-110 Tamper Assembly
Parts List on PL 12.45.
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the LCSS covers REP 12.1-110.

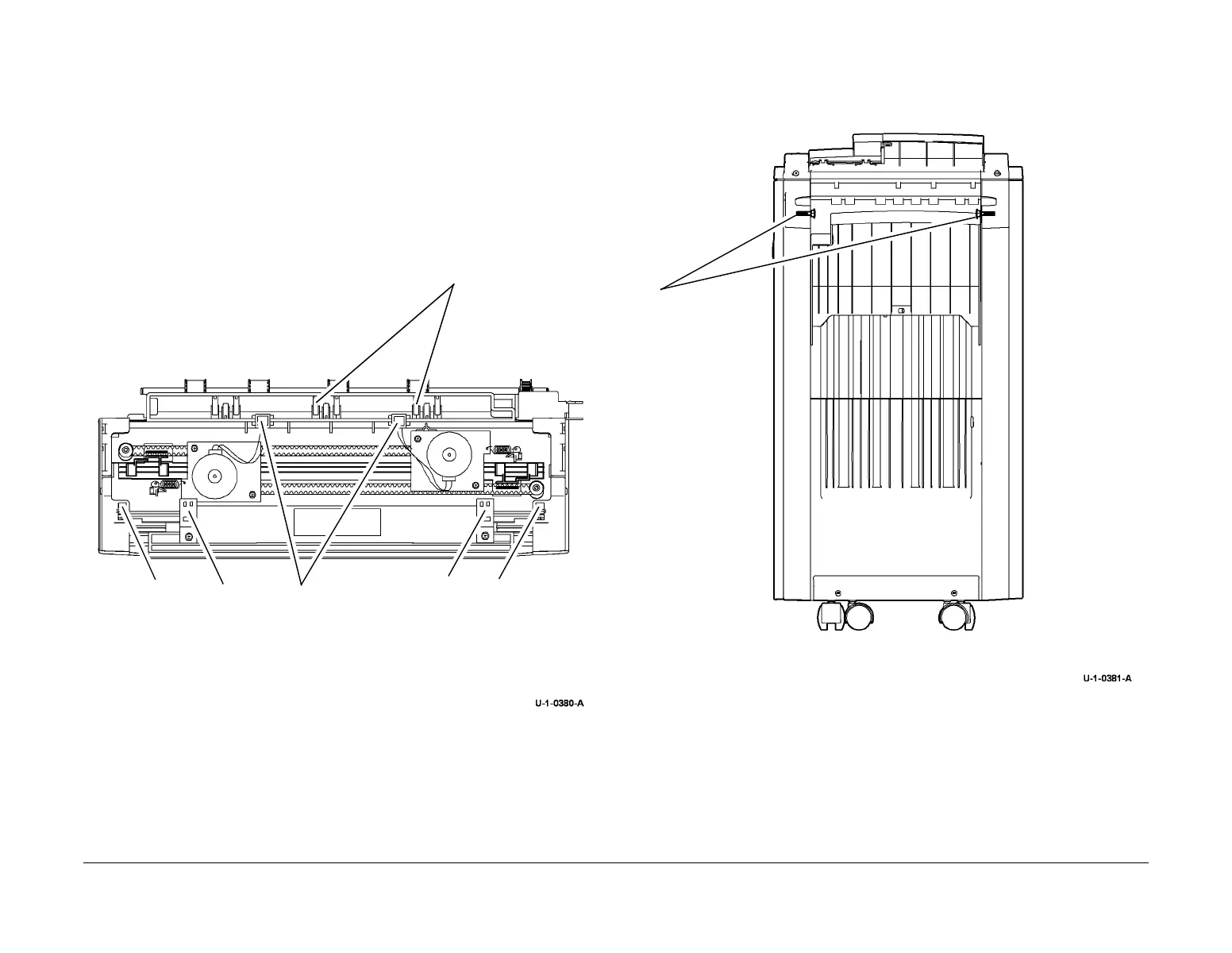

2. Prepare to remove the tamper assembly Figure 1.
Figure 1 Preparing the tamper assembly
3. Figure 2, remove the tamper assembly.
Figure 2 Removing the tamper assembly
1
Disconnect 4 sensor harnesses marked A and
release the harnesses from the retainers.
Release the harness
from all retainers along
the tamper assembly.
2
Disconnect the tamper
motors harnesses.
Release the harness from the retainer
next to the paddle motor assembly, PL
12.25 Item 10.
A
A
A
A
1
Remove 2 screws
2
Lift the tamper
assembly upwards
and remove from the
LCSS
To Next Page
