ColorQube® 9303 Family
REP 10.18
Repairs/Adjustments
REP 10.18 Roller Nip N
Parts List on PL 10.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the exit paper path, REP 10.20.
2. Remove the mounting plate, Figure 1.

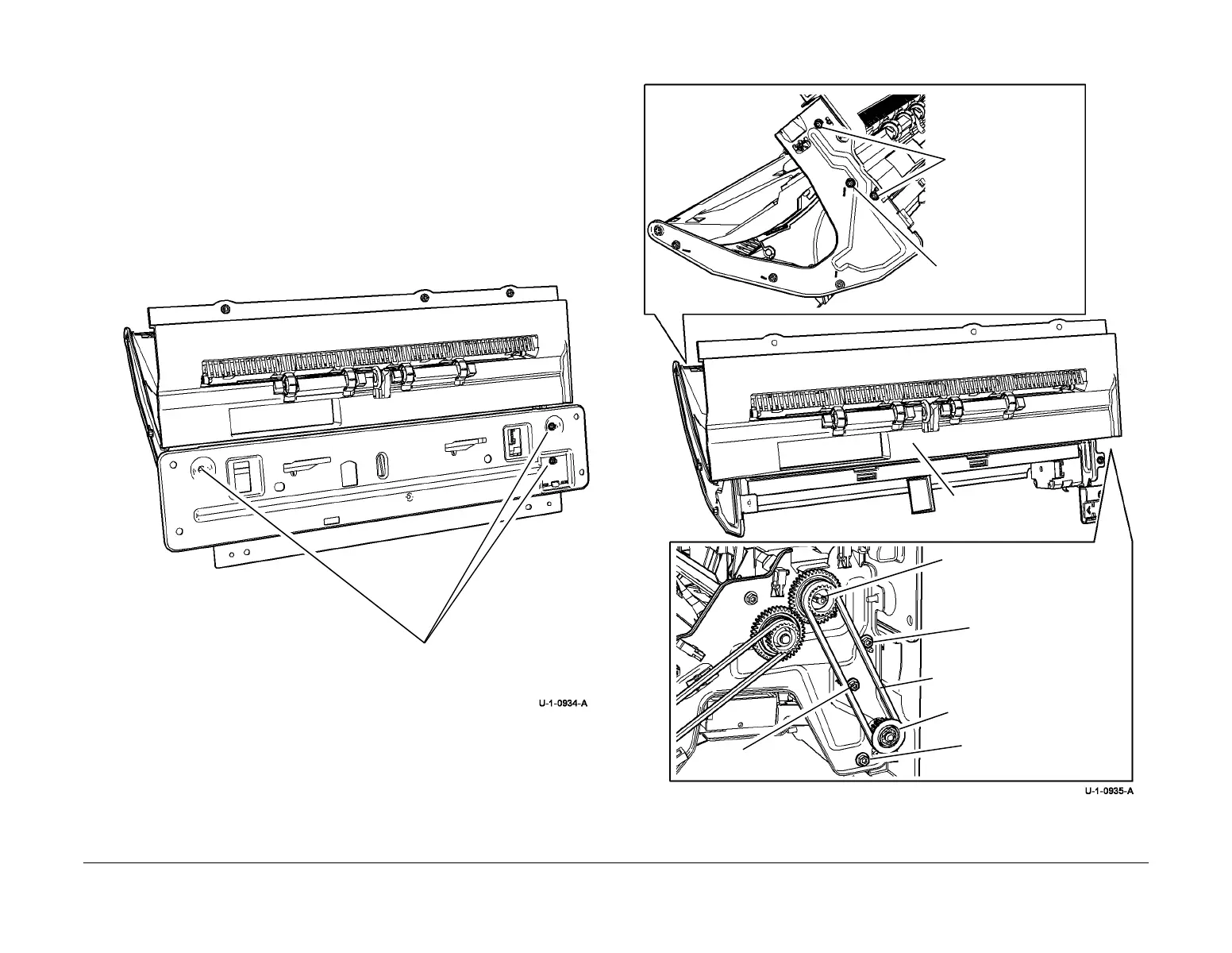

Figure 1 Mounting plate removal
NOTE: Carefully remove the roller nip N housing from the exit paper path assembly. The
springs and nip idlers will be ejected.
3. Prepare to remove the roller nip N, Figure 2.
Figure 2 Preparation
1
Remove 3 screws then the
mounting plate.
1
Remove 2 screws.
2
Loosen screw.
5
Remove screw.
6
Loosen screw.
3
Carefully release the gear
tangs, then remove the gear,
belt and pulley.
4
Remove screw.
Belt.
Pulley.
Roller nip N housing.
