Xerox ColorQube 9303 Series Service Manual

February 2013
3-110
ColorQube® 9303 Family
IQS 5, IQS 6
Image Quality
IQS 5 X-Stitch
Specification
Figure 1 shows a level of X-stitch error that provides a basis for determining defect severity. If
X-stitch error exceeds Figure 1, corrective action is necessary.
NOTE: The x-stitch print is made up of an interference pattern. The degree of an x-stitch issue
is highly exaggerated on this print. The actual x-stitch error will appear less pronounced on a
customer image. If in doubt about the severity of an x-stitch issue print a customer image to
determine if it is visible.

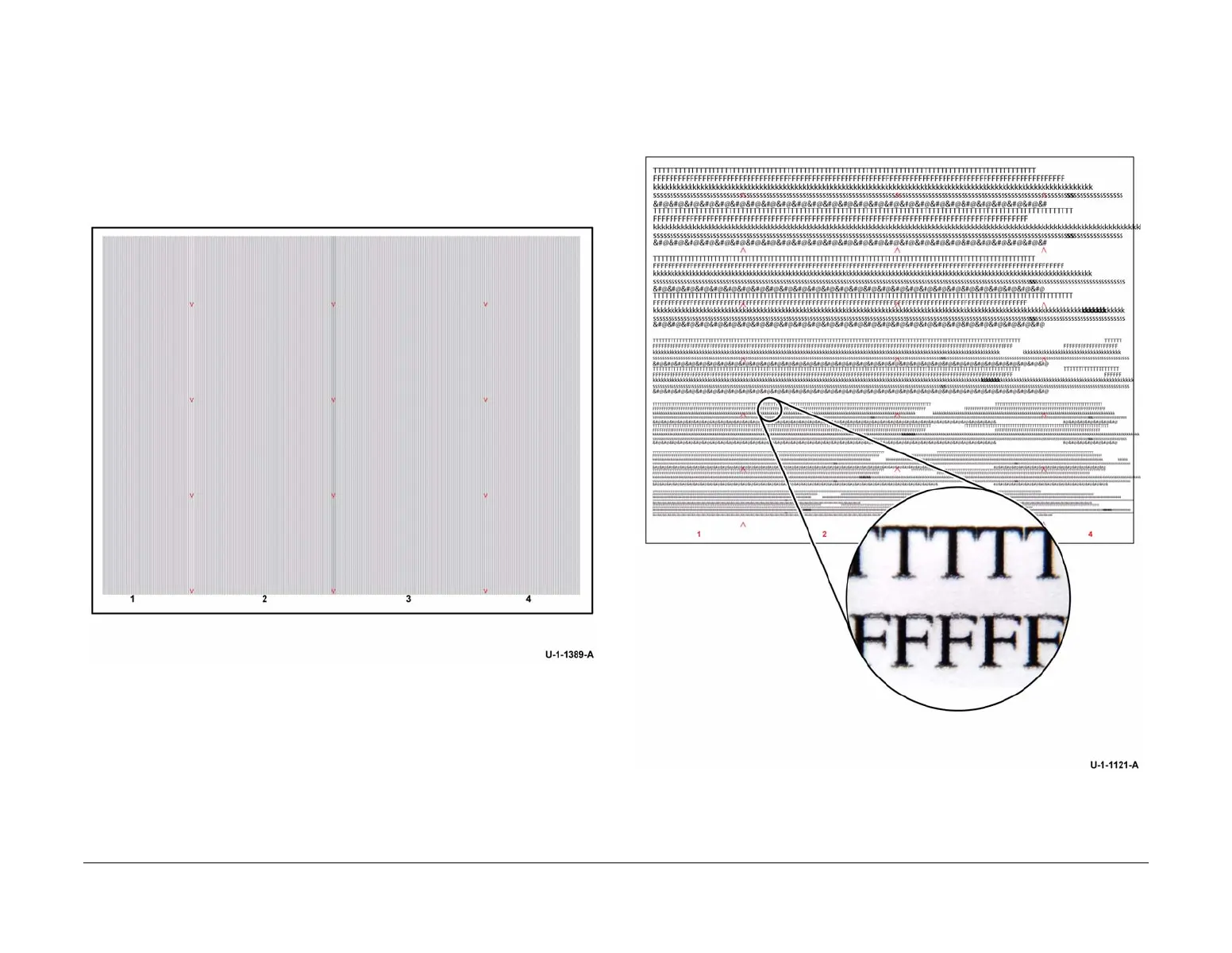

Figure 1 Acceptable X-stitch example
IQS 6 Blurry Text
Specification
Figure 1 shows a level of blurry text error that provides a basis for determining defect severity.
If the capital F in line D2 exceeds Figure 1, corrective action is necessary. Refer to IQ 5.
Figure 1 Blurry text on TP 12
