Xerox ColorQube 9303 Series Service Manual

February 2013
5-37
ColorQube® 9303 Family
PL 12.125
Parts Lists

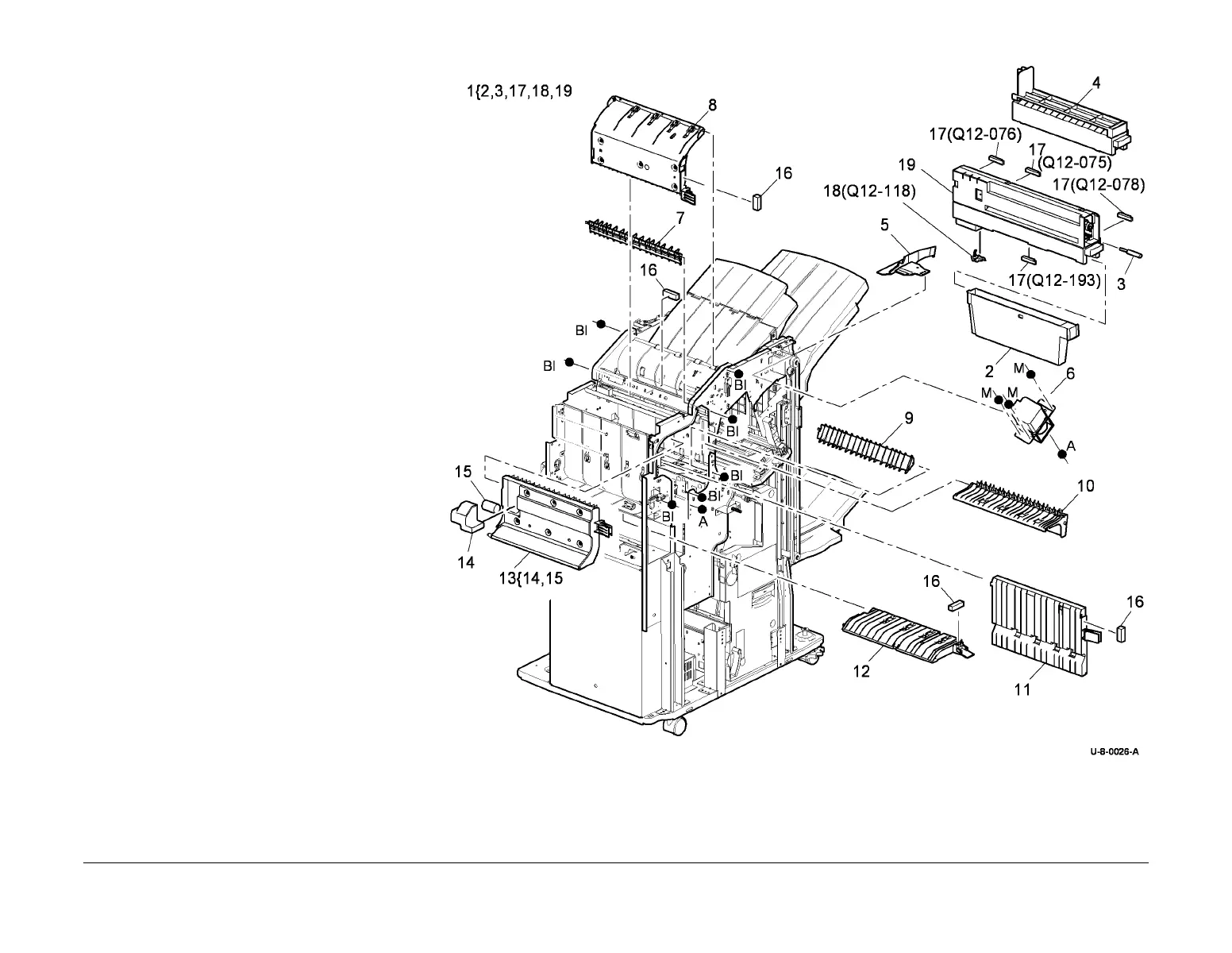

PL 12.125 HVF Feed Assembly and
Punch (1 of 3)
Item Part Description
1 – HVF 2 hole punch assembly (P/O
PL 31.10 Item 5)
– – HVF 3 hole punch assembly (P/O
PL 31.10 Item 5)
2 604K83750 HVF chad bin
3 – Hole punch thumb screw (P/O PL
12.125 Item 1)
4 059K59551 Hole punch blanking assembly
5 – Front tamper arm (Not spared)
6 127K62570 Front tamper motor assembly
(MOT12-226) (REP 12.11-171)
7 038E41350 Diverter exit gate (REP 12.35-171)
8 – Upper exit guide (5c) (Not spared)
(REP 12.14-171)
9 038E41341 BM diverter gate (REP 12.39-171)
10 059K69950 Buffer pocket jam clearance guide
(REP 12.33-171)
11 059K69981 Inserter jam clearance guide
assembly (8a) (REP 12.34-171)
12 059K69961 Input jam clearance guide (5a)
(REP 12.32-171)
13 059K69972 Buffer guide assembly (5b) (REP
12.31-171)
14 – Nip split motor cover (P/O PL
12.125 Item 13)
15 – Nip split motor (MOT12-264) (P/O
PL 12.125 Item 13)
16 121K45300 Magnet
17 130E12810 Chad bin level sensor (Q12-193)/
Punch sensor 1 (Q12-078)/Punch
sensor 2(Q12-075)/Punch sensor
3(Q12-076)
18 130E12840 Chad bin present sensor (Q12-118)
19 604K55210 2 hole punch module (XE)
– 498K17930 4 hole punch module (XE)
– 498K17940 4 hole punch module (Swedish)
