ColorQube® 9303 Family
PL 12.75
Parts Lists

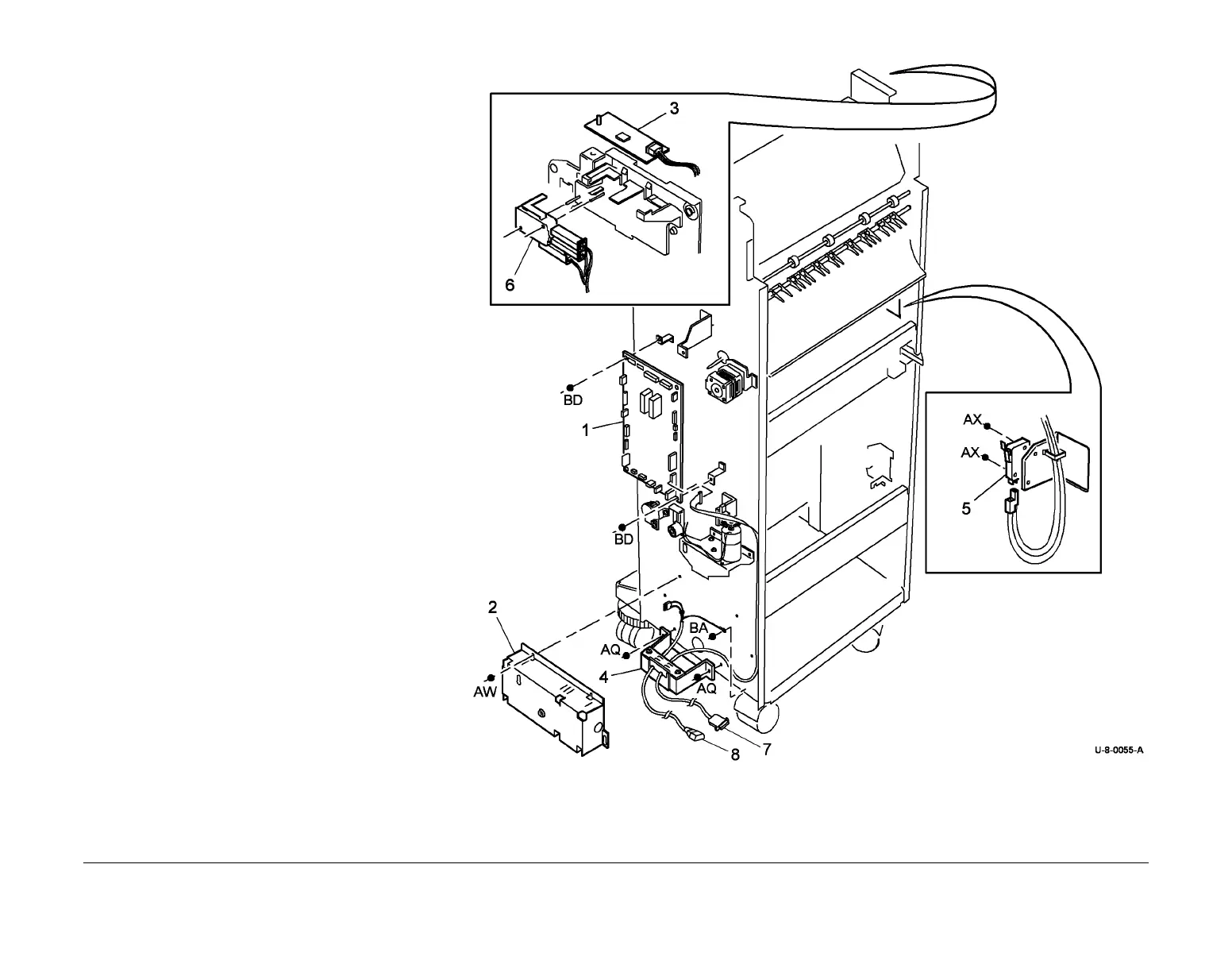

PL 12.75 LCSS Electrical
Item Part Description
1 960K58411 LCSS PWB (CAUTION) (REP
12.14-110)
2 105K35842 Power supply module
3 960K34490 Pause to unload PWB
4 962K56951 Cord bracket assembly
5 110K13980 Front door interlock switch (S12-
303)
6 110K13970 Top cover interlock switch (S12-
197)
7 – LCSS communications harness
(Not spared)
8 – LCSS power cord (Not spared)
CAUTION
Do not install a new LCSS PWB until the cause of the
damage to the old LCSS PWB has been determined. Go to
the 12G-110 LCSS PWB Damage RAP.
