ColorQube® 9303 Family
PL 12.45
Parts Lists

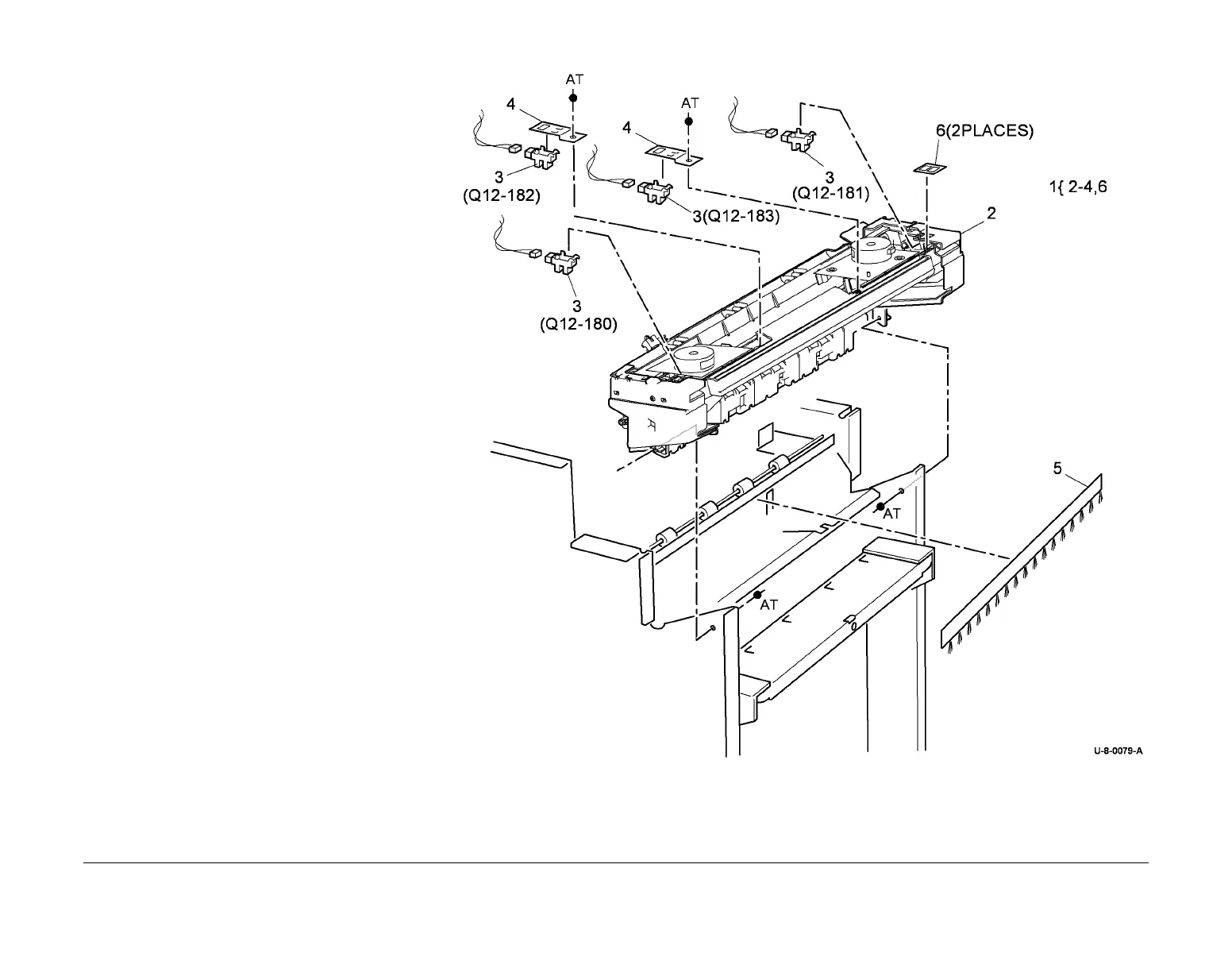

PL 12.45 LCSS Tamper Assembly
Item Part Description
1 049K12120 Tamper assembly (REP 12.6-110)
2 – Tamper unit (P/O PL 12.45 Item 1)
3 130E10360 Front tamper home sensor (Q12-
180),Front tamper away sensor
(Q12-182), Rear tamper home
sensor (Q12-181), Rear tamper
away sensor (Q12-183) (See
NOTE)
4 – Sensor bracket (P/O PL 12.45 Item
1)
5 – Static eliminator (stacker) (REF: PL
12.65 Item 7)
6 – Sensor retainer (P/O PL 12.45 Item
1)
NOTE: The front tamper home sensor (Q12-180) and rear
tamper home sensor (Q12-181) are bonded onto the tamper
unit and are not replaceable. Failure of either of these
sensors will require the replacement of the tamper assembly.
