Xerox ColorQube 9303 Series Service Manual

February 2013
5-86
ColorQube® 9303 Family
PL 81.26
Parts Lists

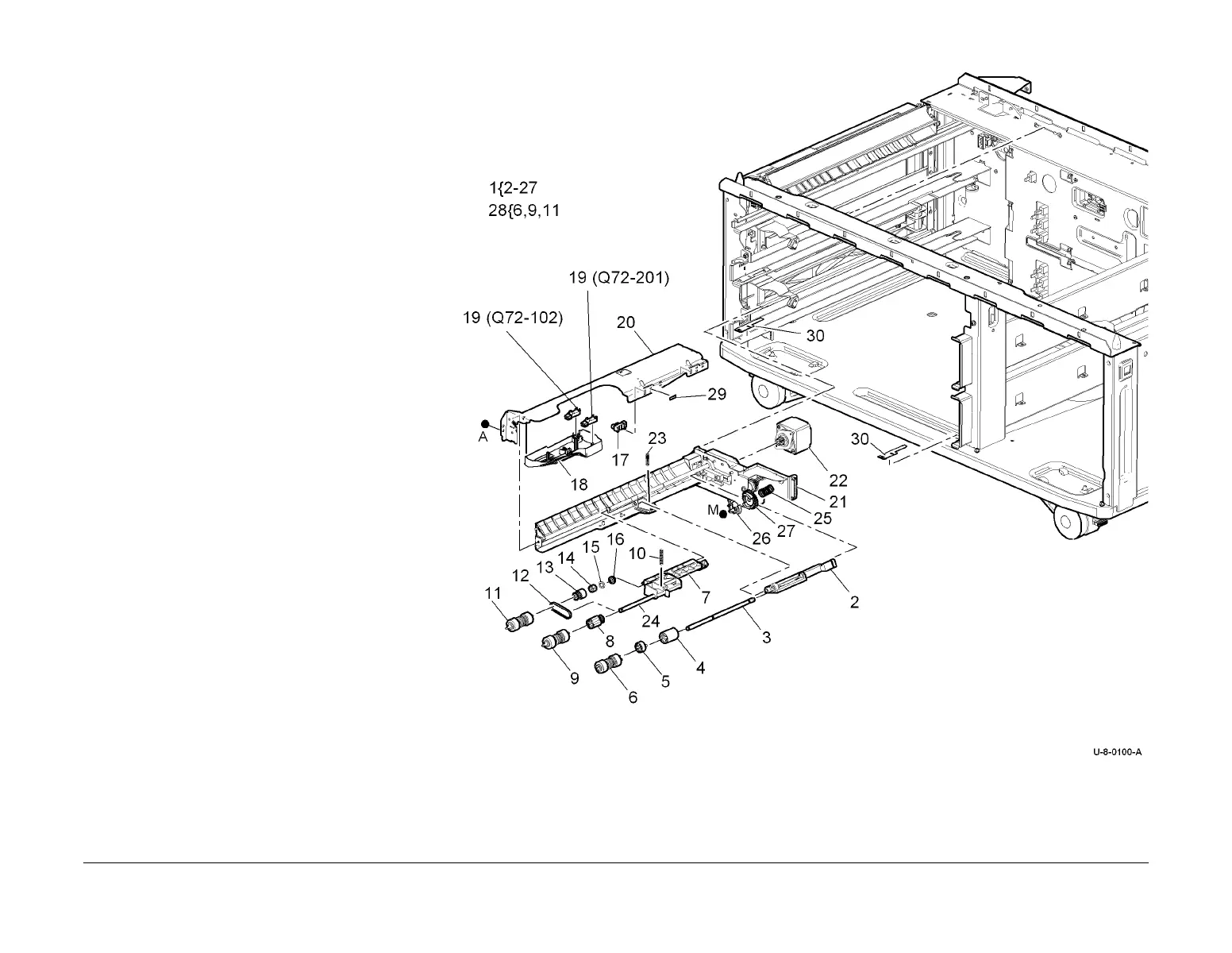

PL 81.26 Tray 2 Paper Feed Assembly
Item Part Description
1 059K64454 Feedhead assembly (REP 81.1)
2 – Retard roll support (P/O PL 81.26
Item 1)
3 – Retard roll shaft (P/O PL 81.26 Item
1)
4 – Clutch assembly (P/O PL 81.26
Item 1)
5 – Coupling (P/O PL 81.26 Item 1)
6 – Retard roll assembly (REP 81.4) (P/
O PL 81.26 Item 28) (See NOTE)
7 – Nudger roll support (P/O PL 81.26
Item 1)
8 – Nudger pulley (P/O PL 81.26 Item
1)
9 – Nudger roll assembly (REP 81.4)
(P/O PL 81.26 Item 28) (See
NOTE)
10 809E95240 Spring
11 – Feed roll assembly (REP 81.4) (P/
O PL 81.26 Item 28) (See NOTE)
12 – Drive belt (P/O PL 81.26 Item 1)
13 – Drive clutch (P/O PL 81.26 Item 1)
14 – Feed pulley (P/O PL 81.26 Item 1)
15 – Washer (P/O PL 81.26 Item 1)
16 – Bearing (P/O PL 81.26 Item 1)
17 130E18220 Stack height sensor (Q72-337)
18 038E41151 Guide
19 130E11610 Tray 2 empty sensor (Q72-201)/
Feed sensor (Q72-102) (REP 81.8)
20 – Cover (P/O PL 81.26 Item 1)
21 – Elevator coupling assembly (P/O
PL 81.26 Item 1)
22 – T2 feed/elevator motor (MOT72-
001) (P/O PL 81.26 Item 1)
23 – Spring (P/O PL 81.26 Item 1)
24 – Nudger roll shaft (P/O PL 81.26
Item 1)
25 – Spring (P/O PL 81.26 Item 1)
26 – Dog spacer (P/O PL 81.26 Item 1)
27 – Gear 31 (P/O PL 81.26 Item 1)
28 – Feed roll kit (REF: PL 31.11 Item
26)
29 014E68410 Shim
30 019E74540 Slide pad
NOTE: To reset the HFSI count, got to dC135
.
