ColorQube® 9303 Family
REP 10.19, REP 10.20
Repairs/Adjustments
4. Remove the exit illuminator PWB, Figure 2.
Figure 2 LED PWB removal
Replacement
Replacement is the reverse of the removal procedure.
REP 10.20 Exit Paper Path
Parts List on PL 10.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Open the front door.
2. Remove the inner cover, PL 81.11 Item 2.
3. Remove the finisher.
4. Remove the right cover, PL 81.10 Item 3.
5. Remove handle 4a, Figure 1.

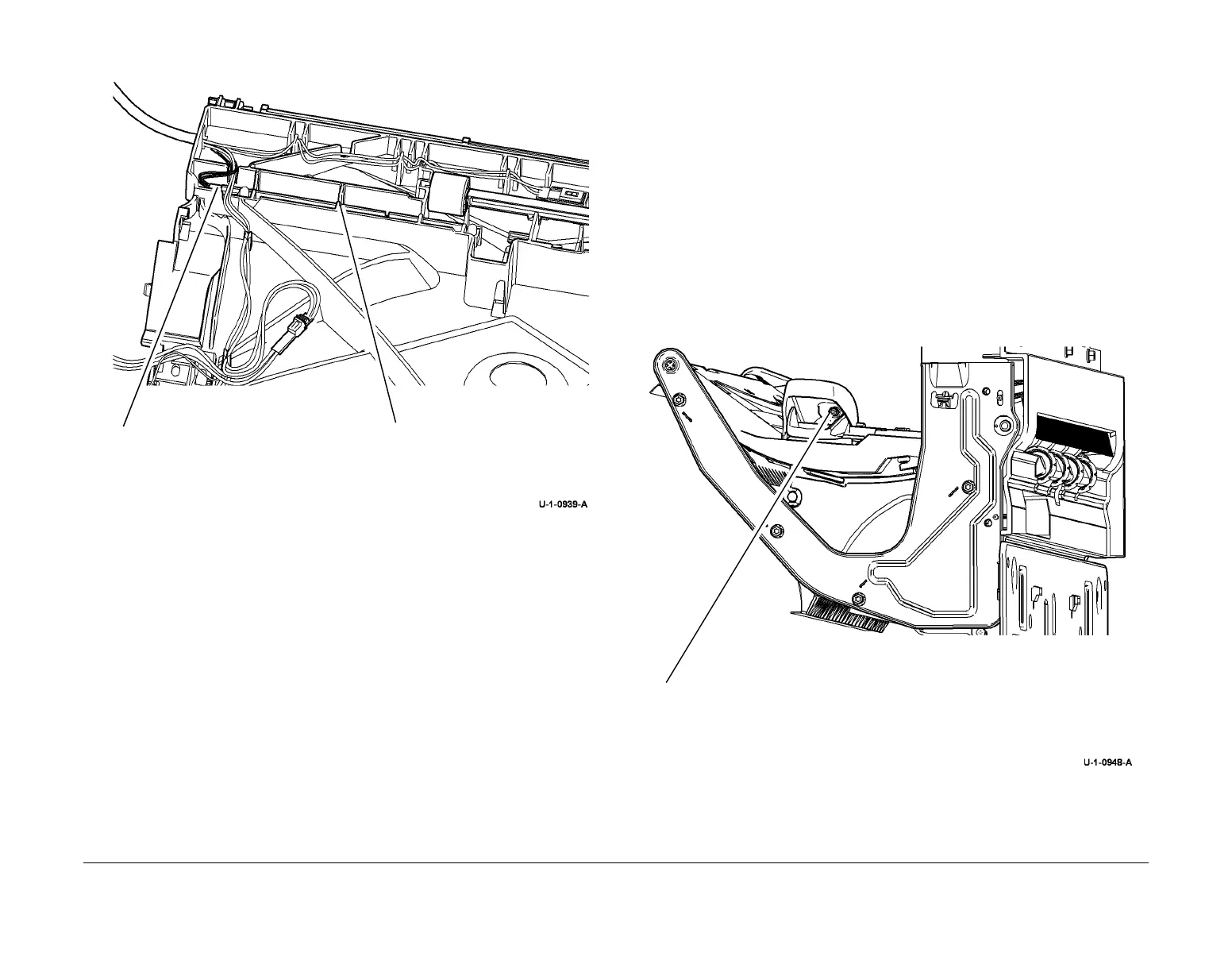

Figure 1 Handle 4a removal
1
Release the exit illuminator PWB
from the securing tag, then remove
it.
2
Disconnect the harness.
1
Remove the screw then handle 4a.
