February 2013
4-287
ColorQube® 9303 Family
REP 81.1
Repairs/Adjustments
REP 81.1 Tray 1 and Tray 2 Paper Feed Assembly
Parts List on PL 81.25, PL 81.26
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove tray 1 or tray 2 as required, REP 71.1.
2. Remove the rear left cover, PL 70.25 Item 7.
3. Remove the lower left door assembly, Figure 1.

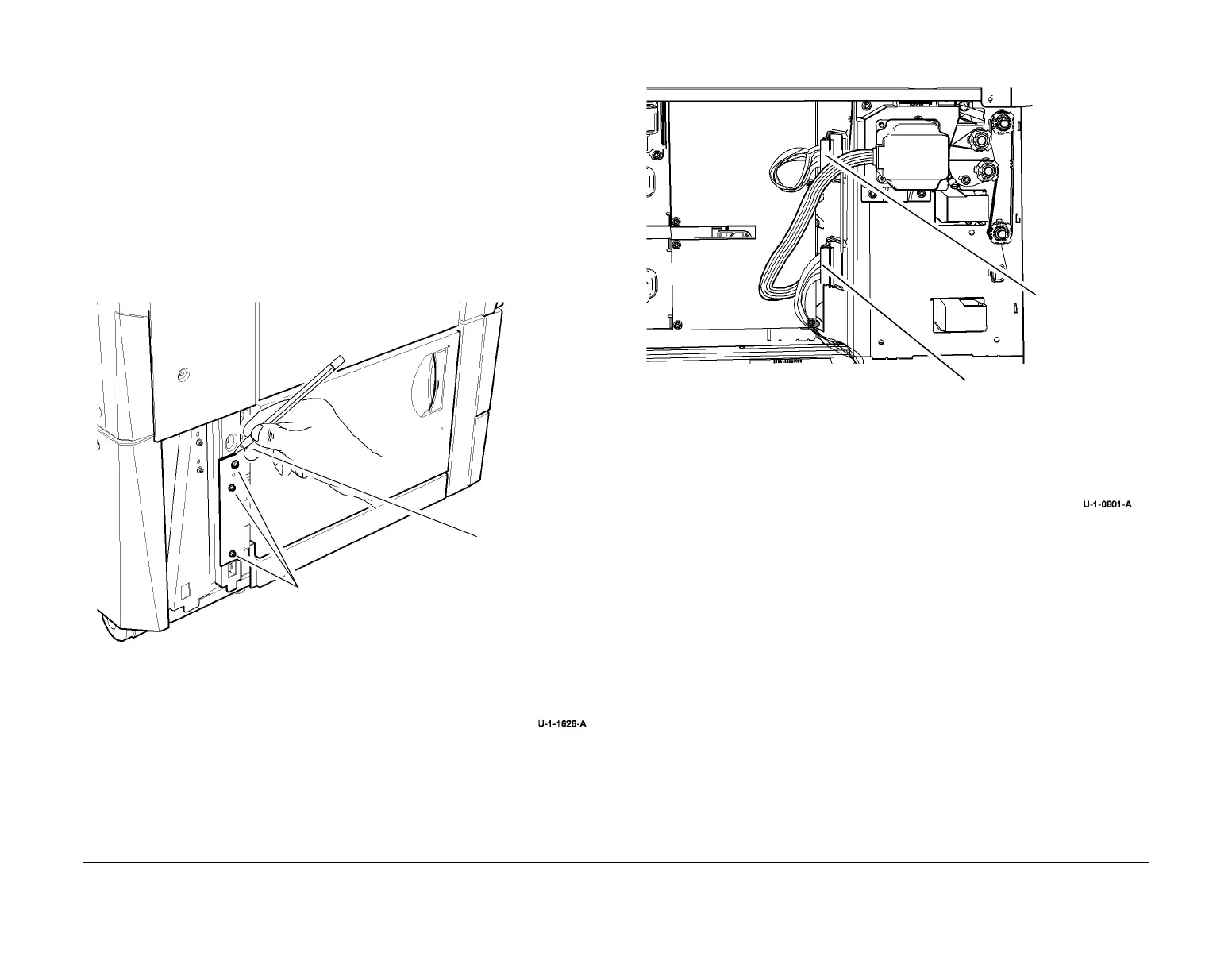

Figure 1 Lower left door assembly
4. Remove the rear cover, PL 70.25 Item 8.
5. Disconnect the harness from the feed motor as required, Figure 2.
Figure 2 Disconnect harness
1
Mark the position o
the hinge.
2
Remove 3 screws.
3
Unlatch and remove the lower
left door assembly.
Tray 2 feed
assembly
harness.
Tray 1 feed
assembly
harness.
1
Disconnect harness as
required.
To Next Page
